Audio Input Jack Connector End View (C3312)

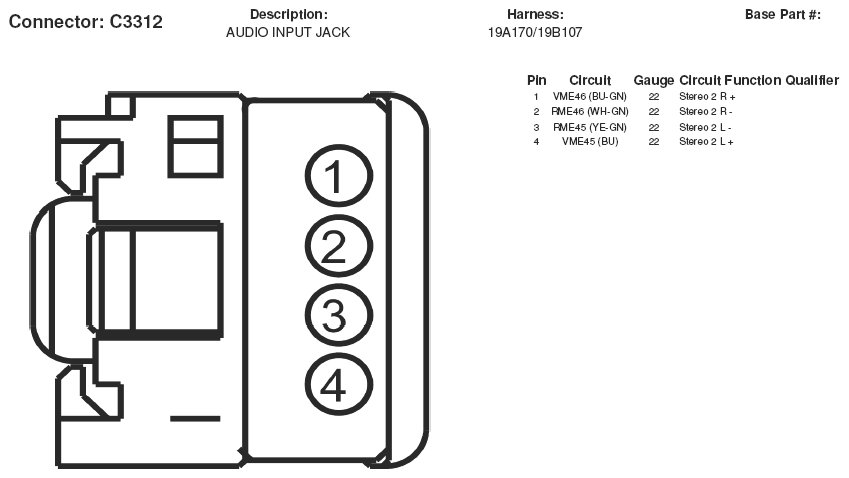

Fig 1: Audio Input Jack Connector End View (C3312)

G05169341

Courtesy of FORD MOTOR CO.
