Throttle Position Sensor Connector End View (C189)

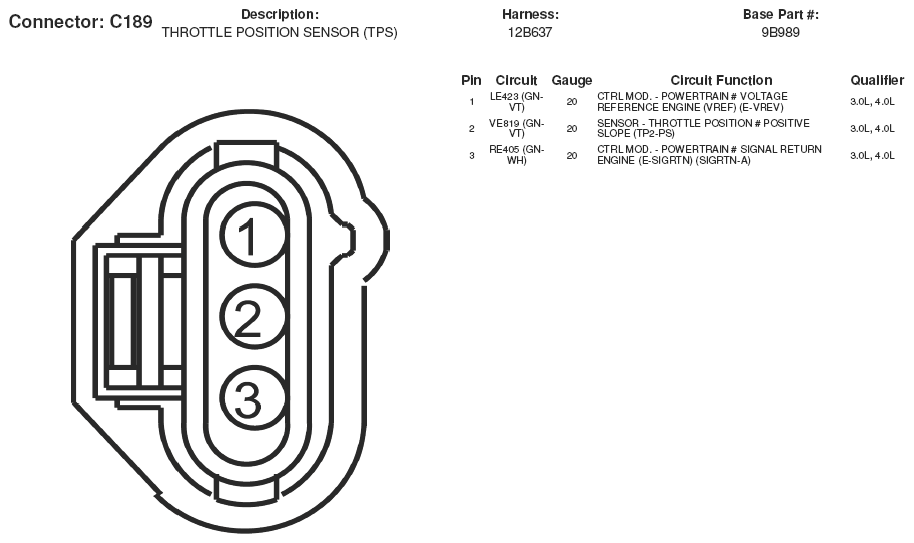

Fig 1: Throttle Position Sensor Connector End View (C189)

G05169171

Courtesy of FORD MOTOR CO.
