Intermediate Shaft Speed Sensor Connector End View (C164)

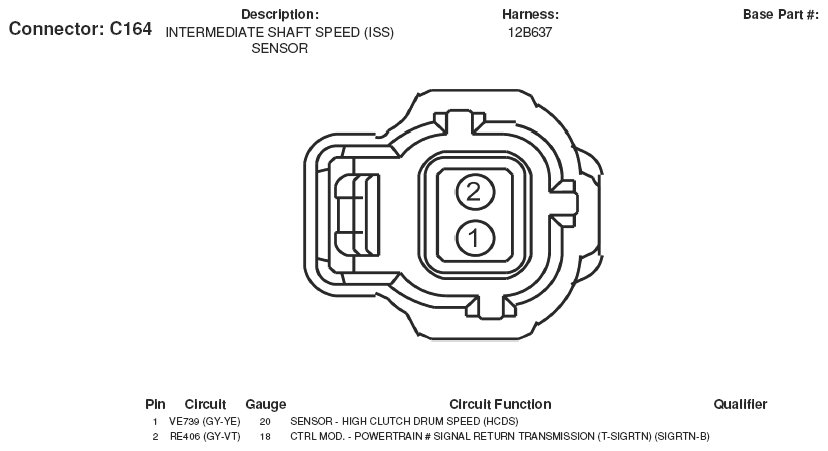

Fig 1: Intermediate Shaft Speed Sensor Connector End View (C164)

G05169160

Courtesy of FORD MOTOR CO.
