Audio Unit Connector End View (C290C)

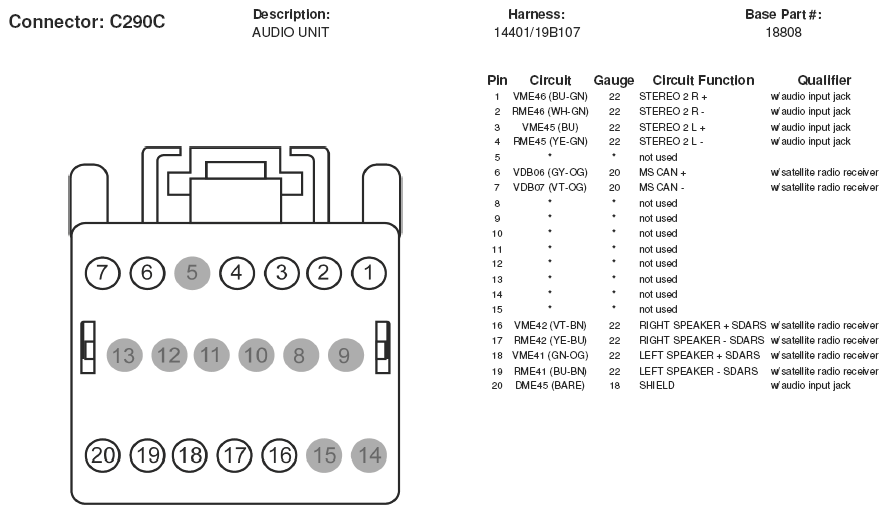

Fig 1: Audio Unit Connector End View (C290C)

G05169213

Courtesy of FORD MOTOR CO.
