Home >> Mazda >> 2007 >> B3000 Base, Automatic >> Repair and Diagnosis >> Suspension >> Front Suspension >> Front Suspension System >> Wheel Knuckle >> Notes

Wheel Knuckle: Notes

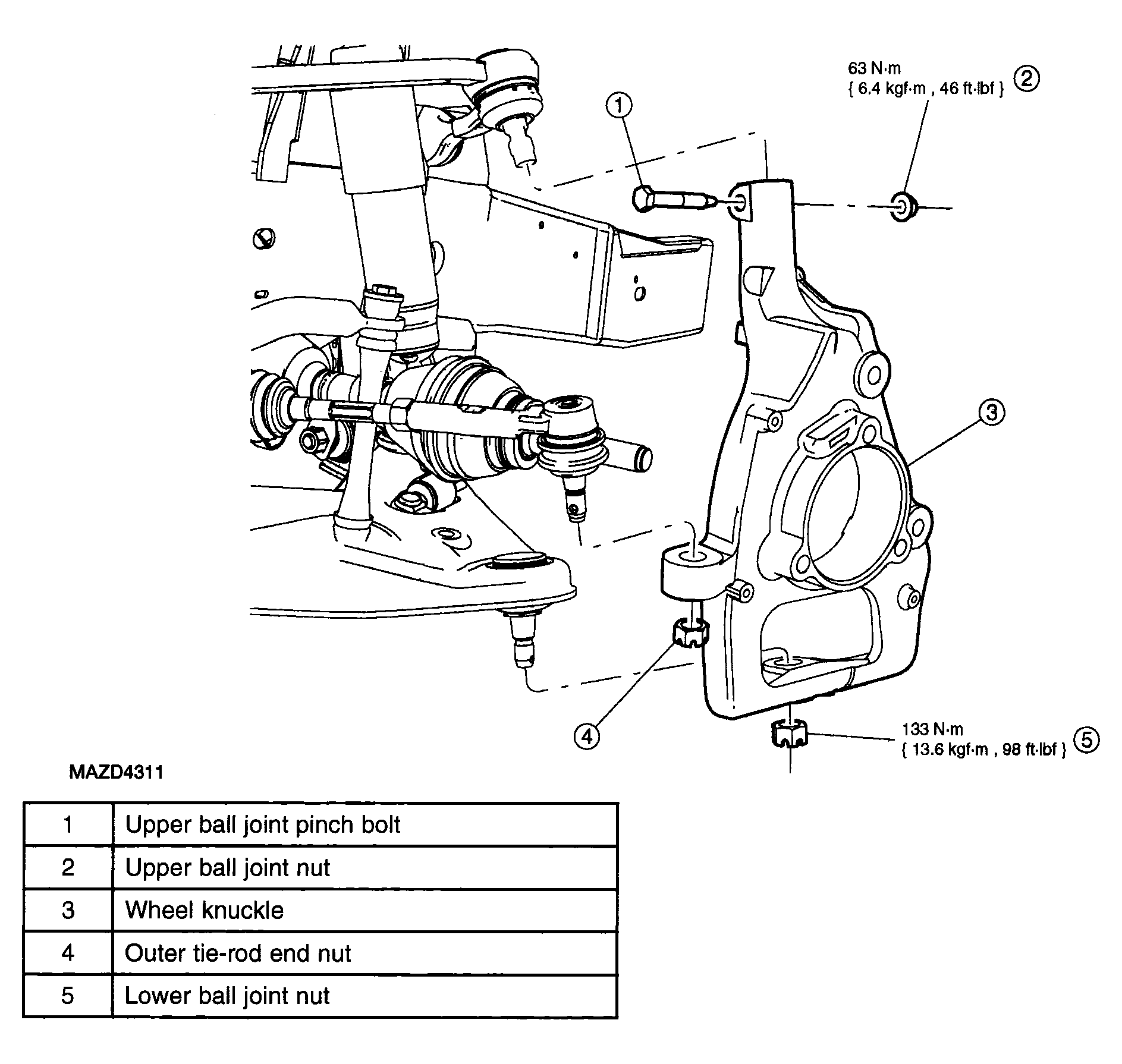

Fig 1: Wheel Knuckle With Torque Specifications

G04308615

Courtesy of MAZDA MOTORS CORP.
