Wheel Hub: Notes

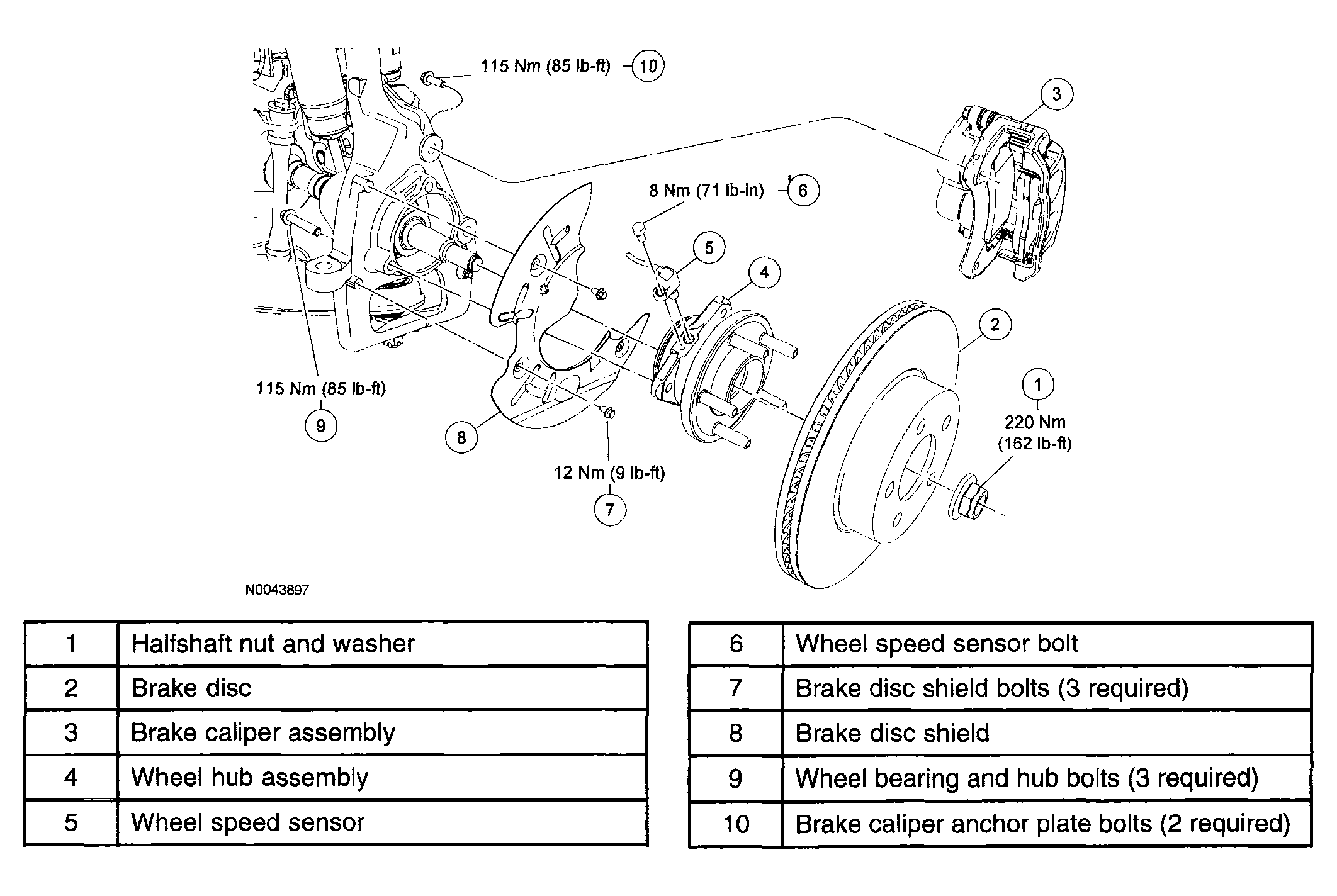

Fig 1: Exploded View Of Wheel Hub Replacement Components With Torque Specifications

G04308613

Courtesy of MAZDA MOTORS CORP.
