Upper Arm: Notes

NOTE:

Coil spring suspension shown, torsion bar suspension similar.

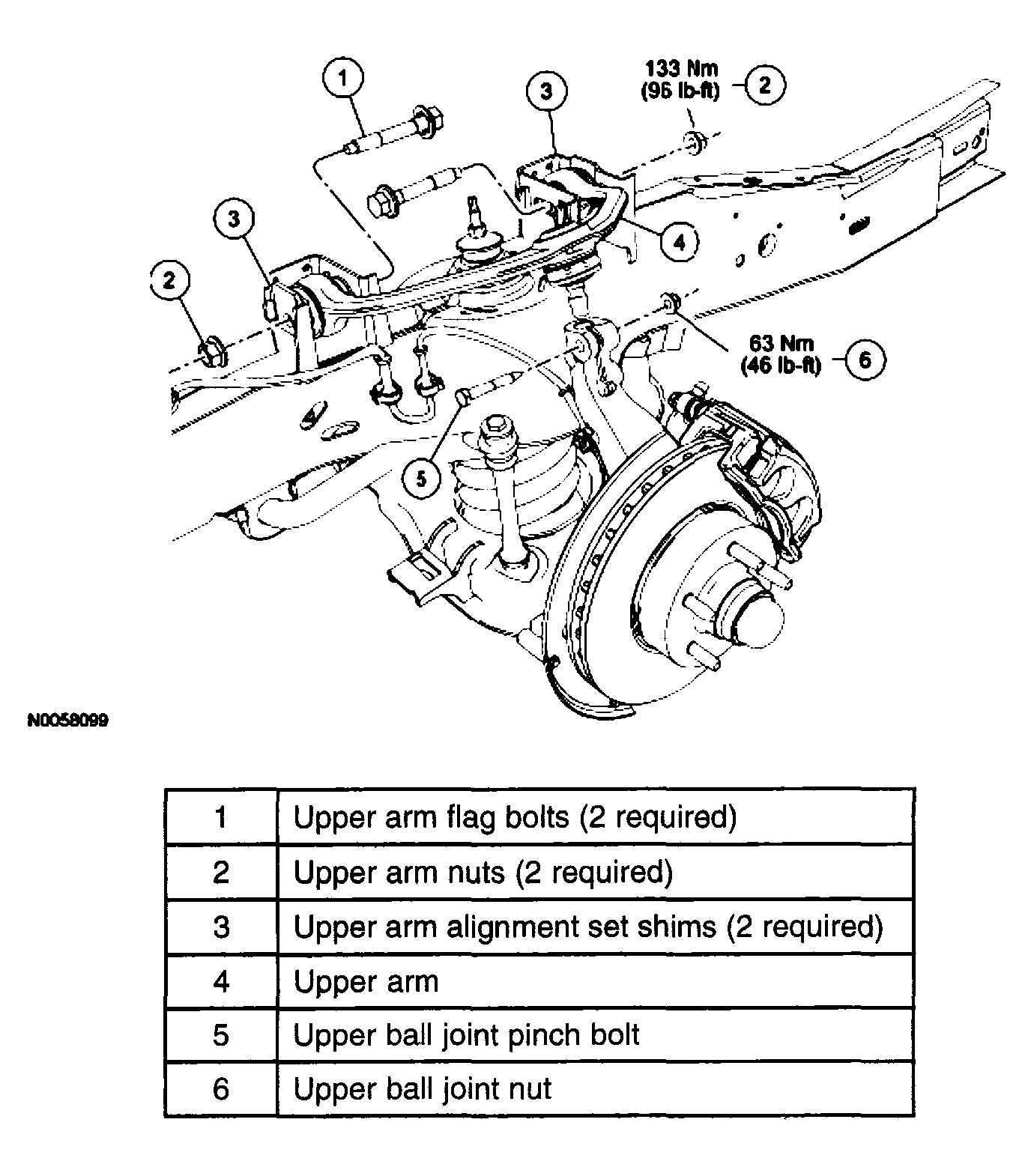

Fig 1: Upper Arm Replacement Components With Torque Specifications

G04308612

Courtesy of MAZDA MOTORS CORP.
