Door Lock Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the door lock switch. (See DOOR LOCK SWITCH REMOVAL/INSTALLATION .)
  2. Inspect for continuity between the door lock switch terminals using an ohmmeter.
    • If not as specified, replace the door lock switch.

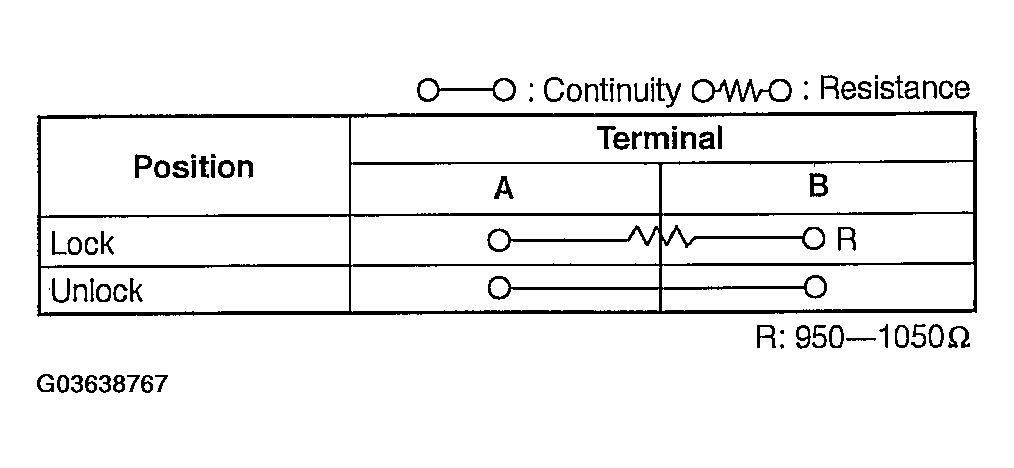

    Fig 1: Door Lock Switch Resistance And Continuity Table
    G03638767Courtesy of MAZDA MOTORS CORP.

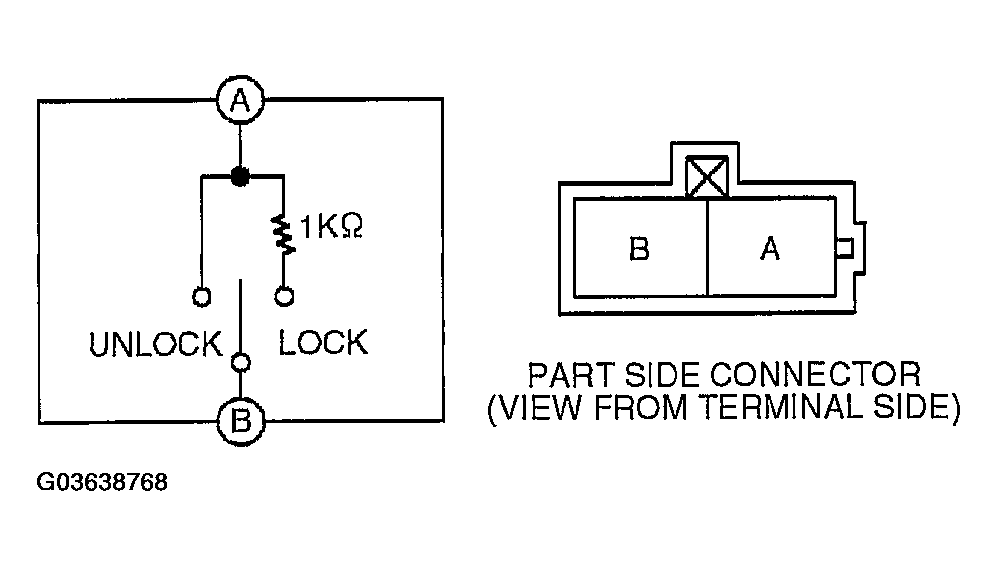

    Fig 2: Inspecting Door Lock Switch Connector Terminals
    G03638768Courtesy of MAZDA MOTORS CORP.
