Door Key Cylinder Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door trim.
  4. Remove the door screen.
  5. Release the outer handle and the door key cylinder installation rods.
  6. Disconnect the door key cylinder switch connector.
  7. Remove the door key cylinder switch.

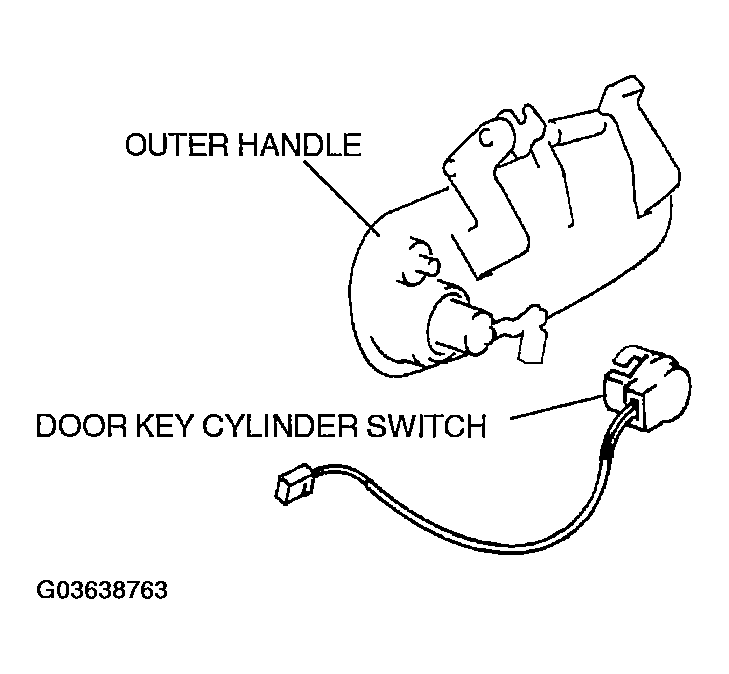

    Fig 1: Removing Door Key Cylinder Switch
    G03638763Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
