WARNING: This page is about a different car, the 2005 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

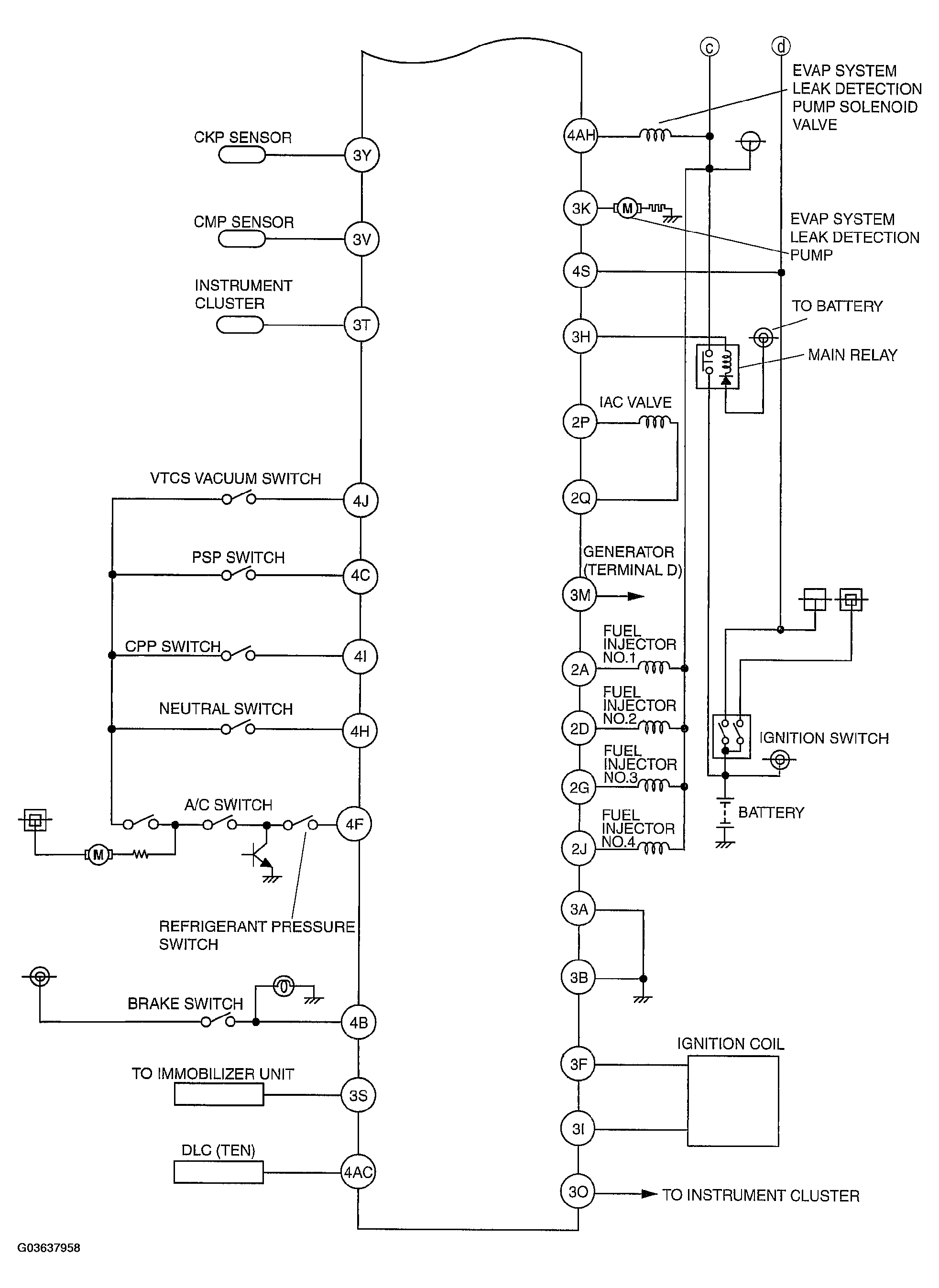

Fig 1: Identifying Control System Wiring Diagram (BP With TC) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

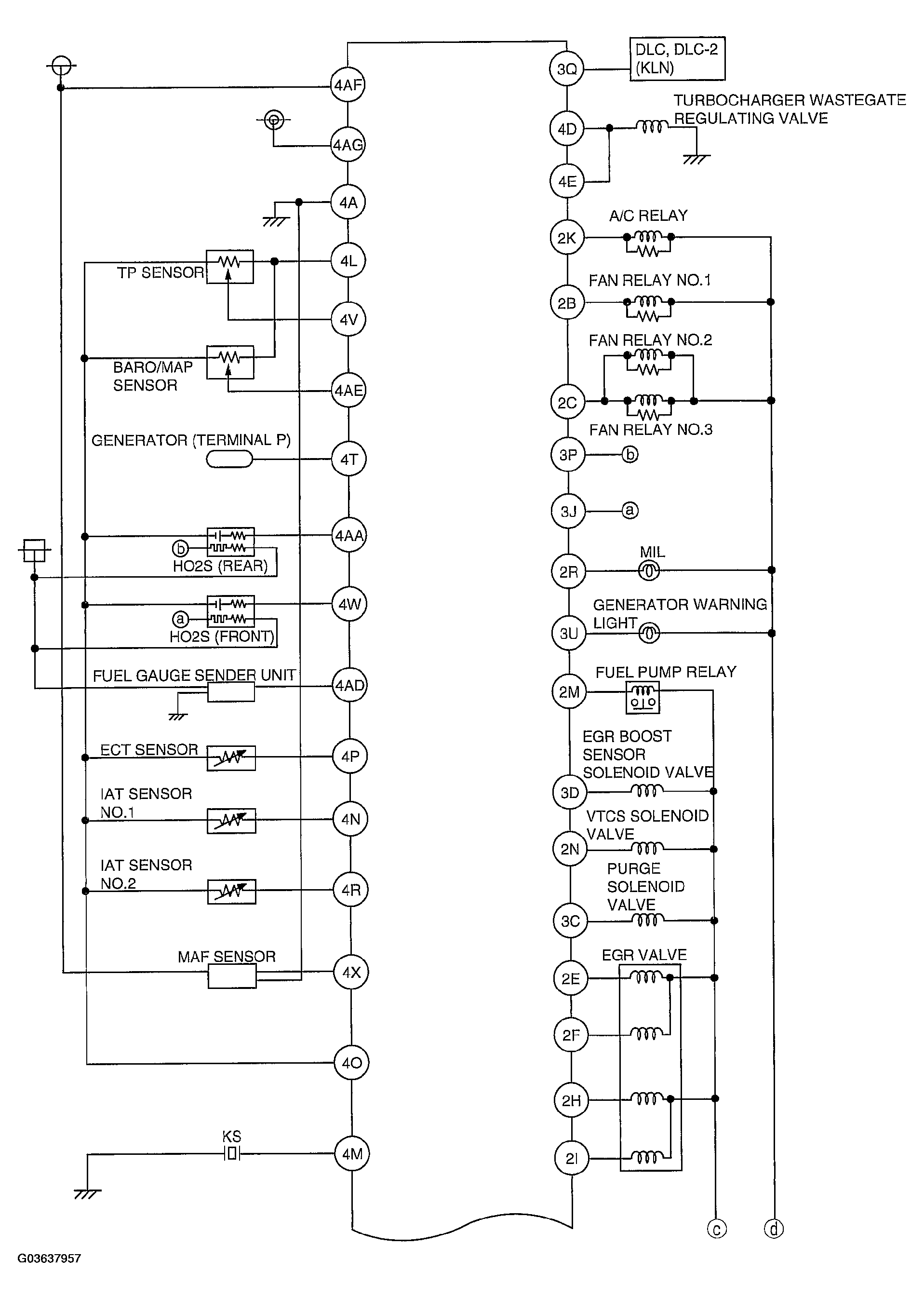

Fig 2: Identifying Control System Wiring Diagram (BP With TC) (2 Of 2)
