Trunk Lid Opener Cancel Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid open cancel switch.
  2. Inspect for continuity between the trunk lid open cancel switch terminals.
    • If not as specified, replace the trunk lid open cancel switch.

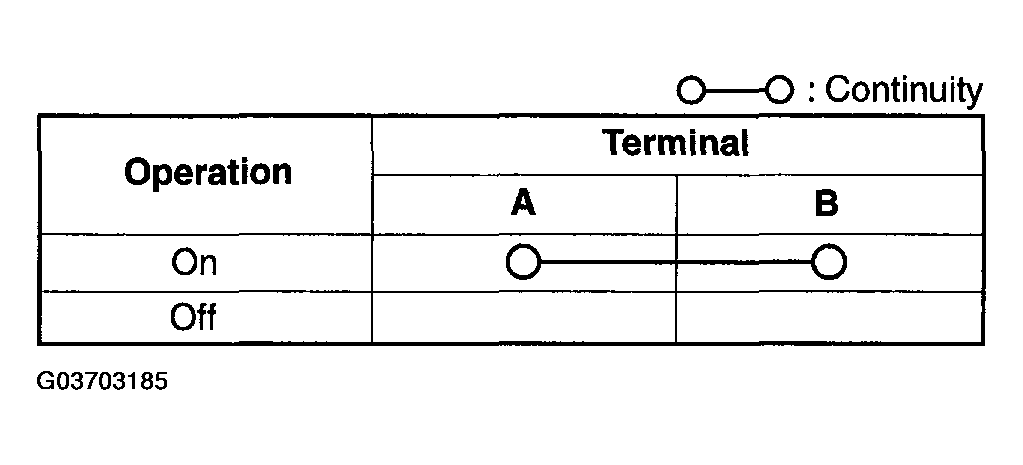

    Fig 1: Connector Terminal Continuity Chart
    G03703185Courtesy of MAZDA MOTORS CORP.

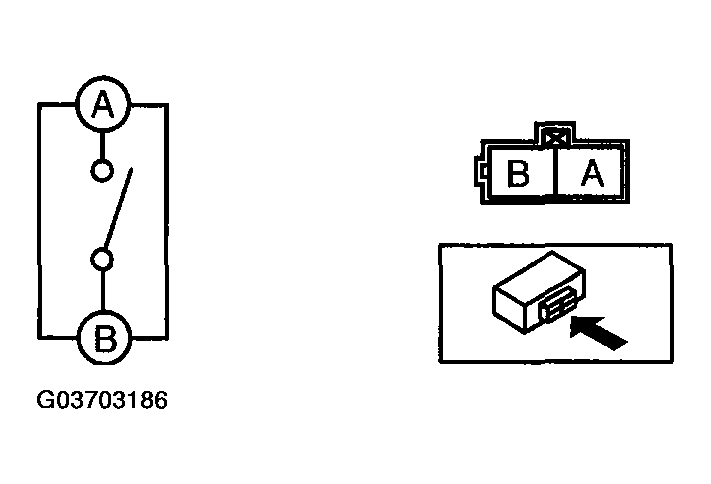

    Fig 2: Inspecting For Continuity Between Trunk Lid Open Cancel Switch Terminals
    G03703186Courtesy of MAZDA MOTORS CORP.
