Trunk Lid Latch And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod.
  4. Disconnect the trunk lid opener connector and the trunk compartment light connector.
  5. Remove the bolts, then remove the trunk lid latch and opener.
  6. Install in the reverse order of removal.

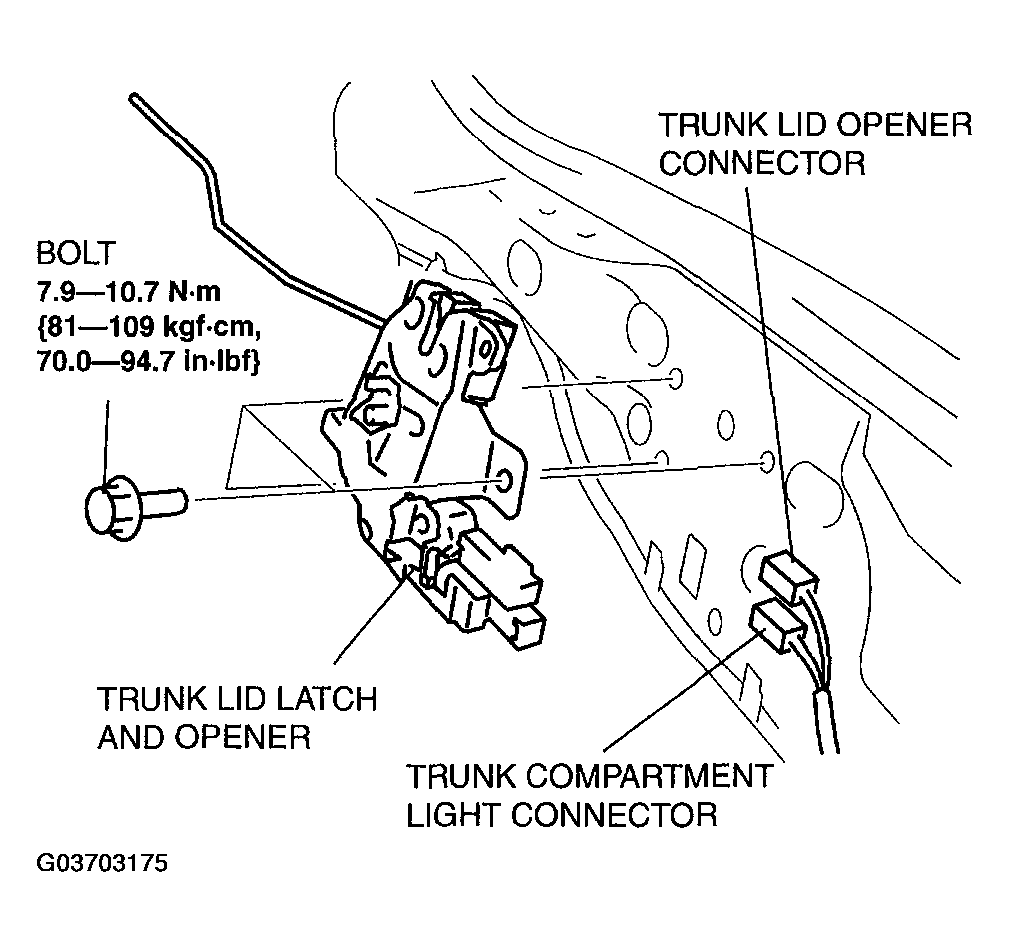

    Fig 1: Removing Trunk Lid Latch And Opener With Torque Specification
    G03703175Courtesy of MAZDA MOTORS CORP.
