Trunk Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk key cylinder switch.
  2. Inspect for continuity between the trunk key cylinder switch terminals.
    • If not as specified, replace the trunk key cylinder.

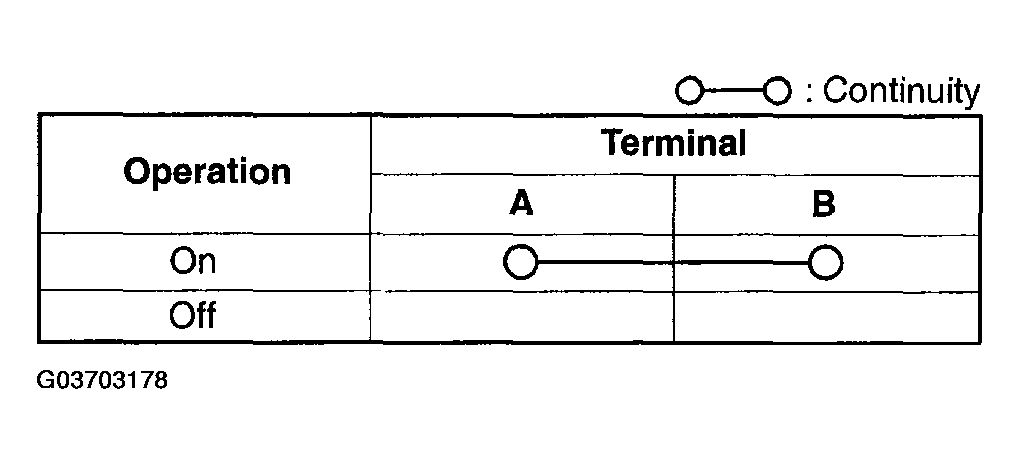

    Fig 1: Connector Terminal Continuity Chart
    G03703178Courtesy of MAZDA MOTORS CORP.

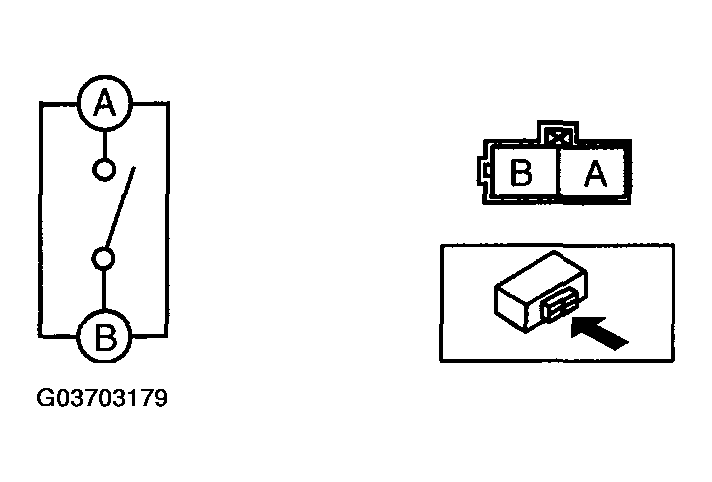

    Fig 2: Inspecting For Continuity Between Trunk Key Cylinder Switch Terminals
    G03703179Courtesy of MAZDA MOTORS CORP.
