Trunk Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk end trim. (See TRUNK END TRIM REMOVAL/INSTALLATION .)
  3. Detach the rod.
  4. Remove the nuts, then remove the trunk key cylinder.
  5. Install in the reverse order of removal.

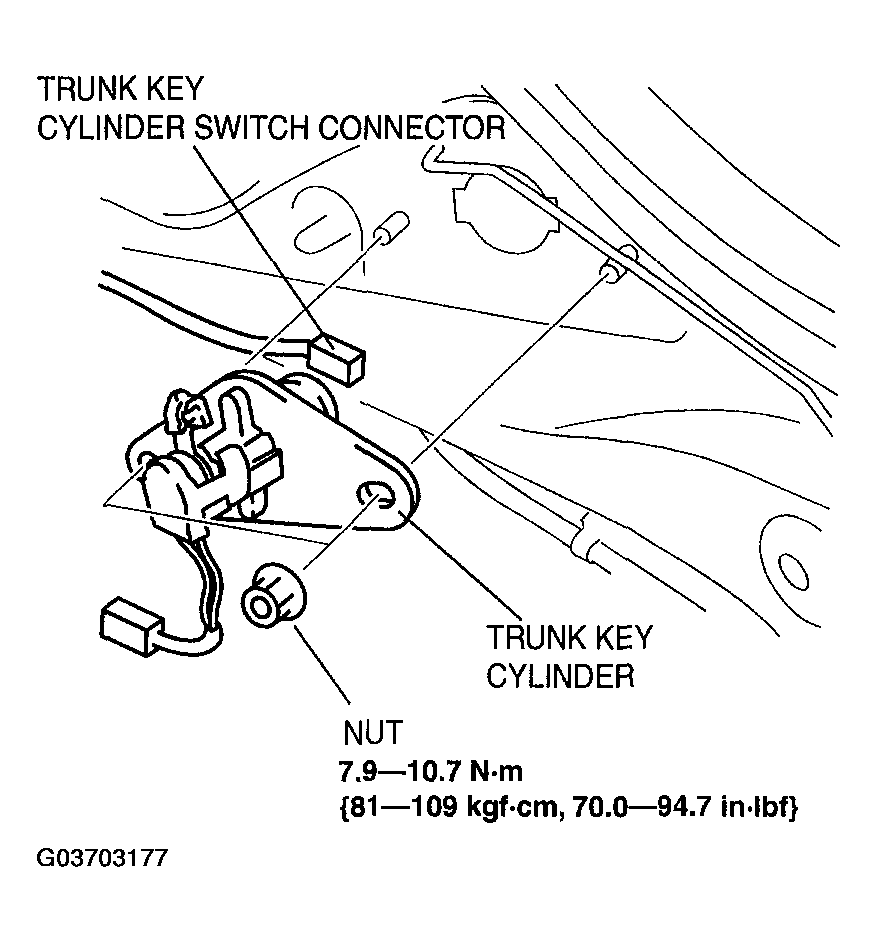

    Fig 1: Removing Trunk Key Cylinder With Torque Specification
    G03703177Courtesy of MAZDA MOTORS CORP.
