Hood Latch Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open the hood.
  2. Disconnect the negative battery cable.
  3. Disconnect the hood latch switch connector.
  4. Inspect for continuity between the hood latch switch terminals A and B.
    • If there is no continuity, replace the hood latch switch.

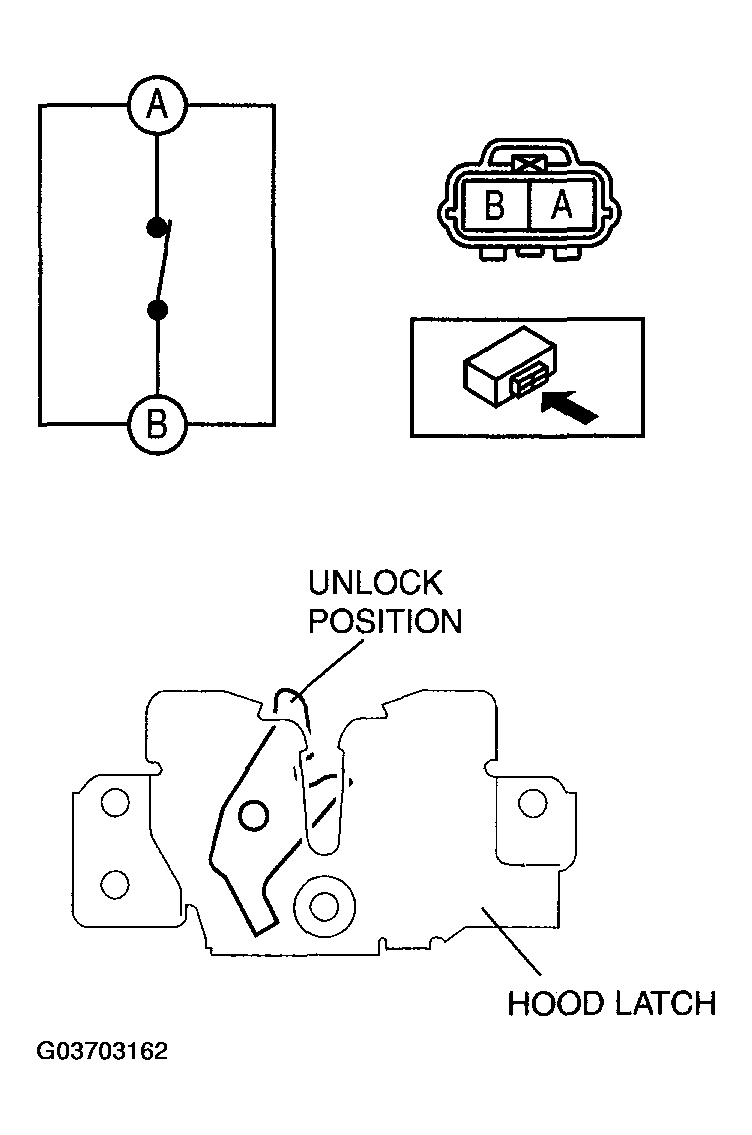

    Fig 1: Inspecting For Continuity Between Hood Latch Switch Terminals
    G03703162Courtesy of MAZDA MOTORS CORP.
  5. Lock the hood latch using a flathead screwdriver or equivalent as shown.
  6. Inspect for continuity between the hood latch switch terminals A and B
    • If there is continuity, replace the hood latch.
    CAUTION:
    • After the inspection, unlock the hood latch. If closing the hood with the hood latch locked, the hood latch and/or hood striker may be broken.

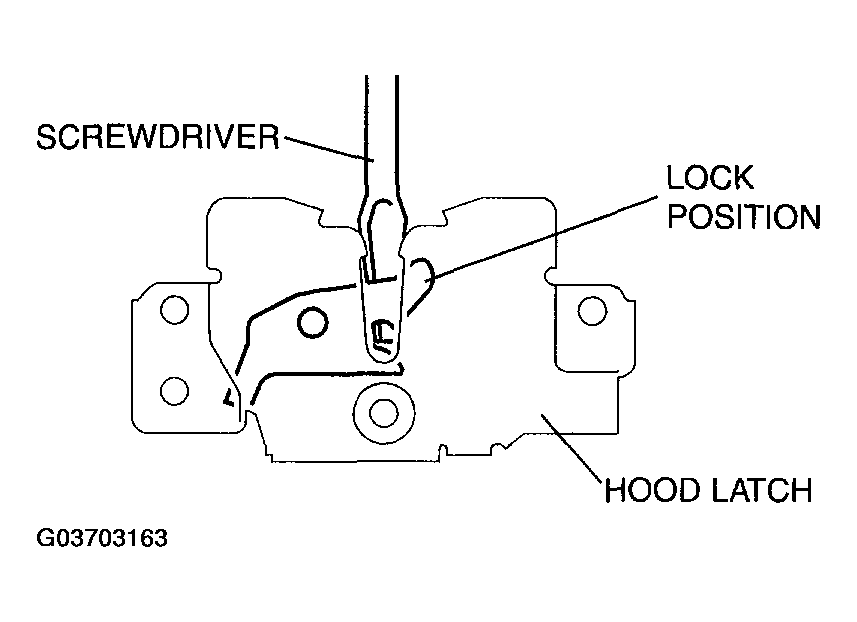

    Fig 2: Locking Hood Latch Using A Flathead Screwdriver Or Equivalent
    G03703163Courtesy of MAZDA MOTORS CORP.
