Door Lock Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Inspect for continuity between the door lock switch terminals.
    • If not as specified, replace the door lock switch.

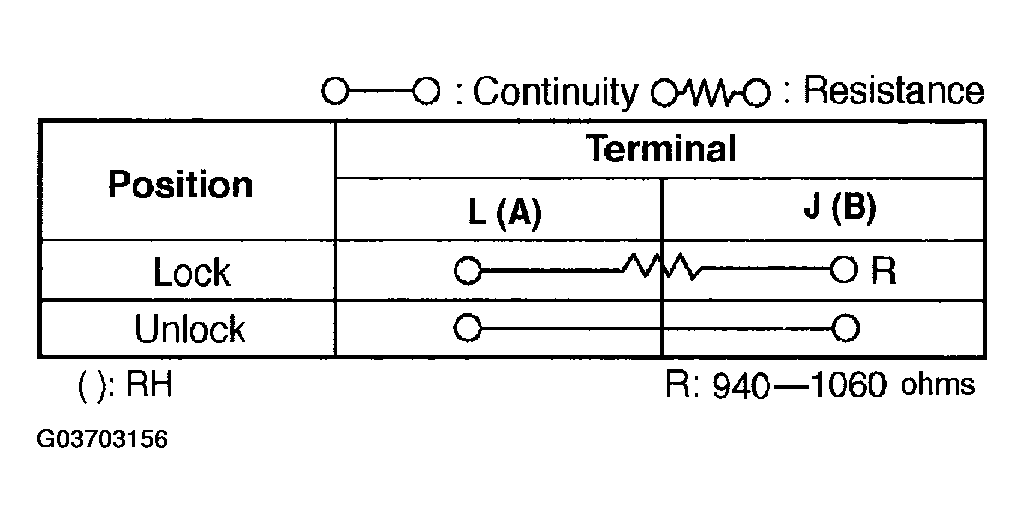

    Fig 1: Door Lock Switch Connector Terminal Continuity Chart
    G03703156Courtesy of MAZDA MOTORS CORP.

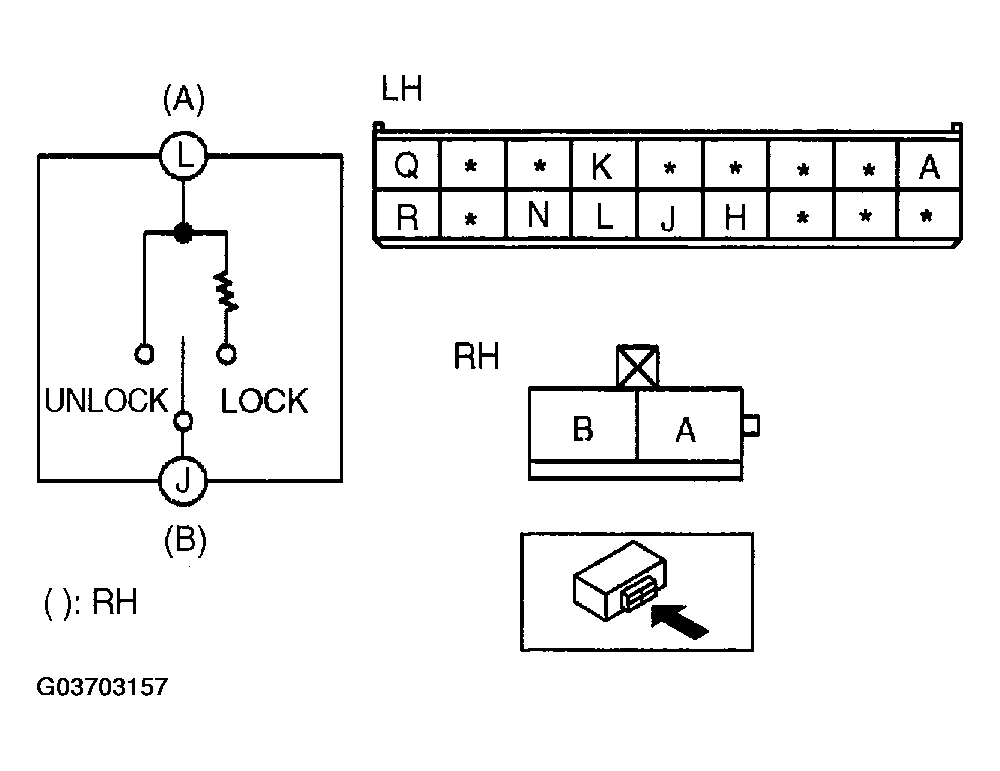

    Fig 2: Inspecting For Continuity Between Door Lock Switch Terminals
    G03703157Courtesy of MAZDA MOTORS CORP.
