Coil Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • The coil should not be removed unless it is being replaced.
  1. Disconnect the negative battery cable.
  2. Remove the column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  3. Disconnect the coil connector.
  4. Detach the steering lock tab from hole on the coil.
  5. Detach the coil tab from the steering lock and remove the coil.
  6. Install in the reverse order of removal.

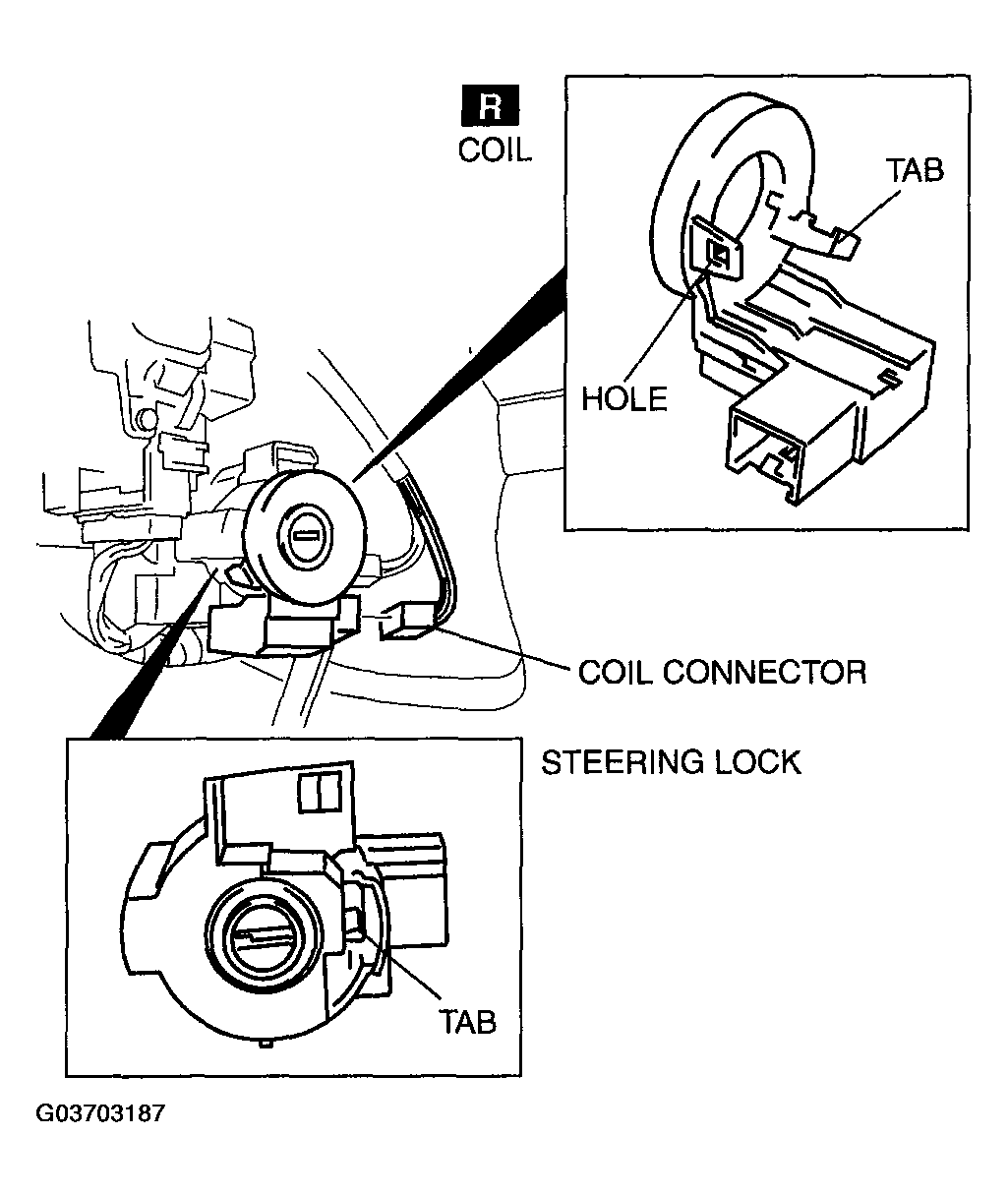

    Fig 1: Detaching Steering Lock Tab From Hole On Coil
    G03703187Courtesy of MAZDA MOTORS CORP.
