Metering oil pump control 2
WARNING: This page is about a different car, the 2005 Mazda RX-8 and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

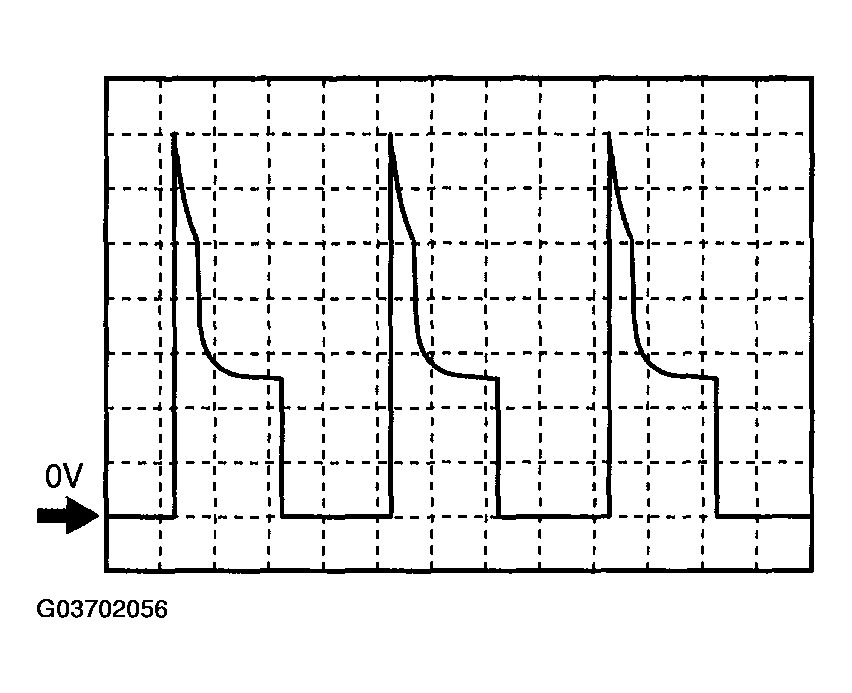

- Terminal connected: 2AB (+)-Negative battery terminal
- Oscilloscope setting: 5 V/DIV (Y): 2 ms/DIV (X), DC range
- Measurement condition: Just after the ignition switch is off after warm-up (no load)
Courtesy of MAZDA MOTORS CORP.
