ECT sensor characteristics graph (reference)

WARNING: This page is about a different car, the 2005 Mazda RX-8 and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

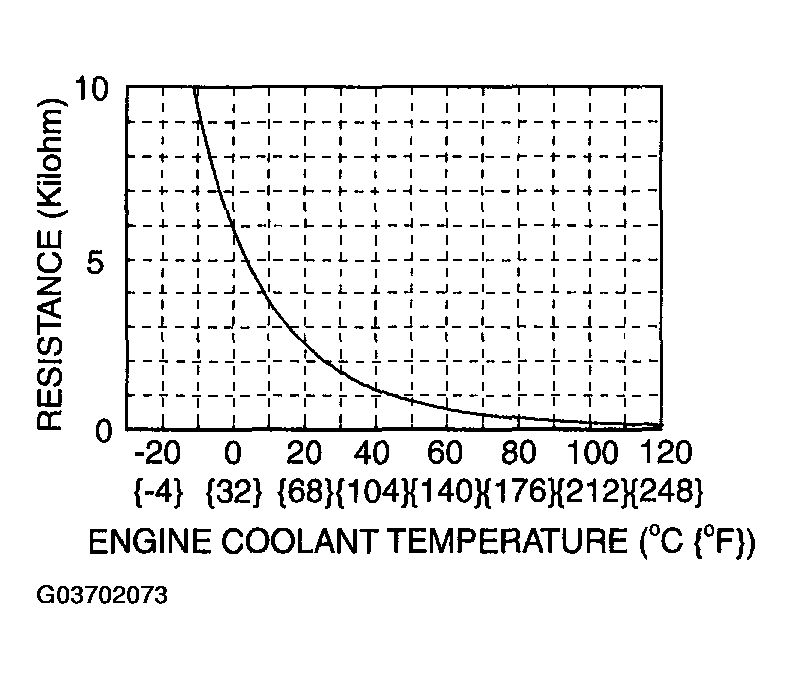

Fig 1: Identifying ECT Sensor Characteristics Graph
G03702073Courtesy of MAZDA MOTORS CORP.
