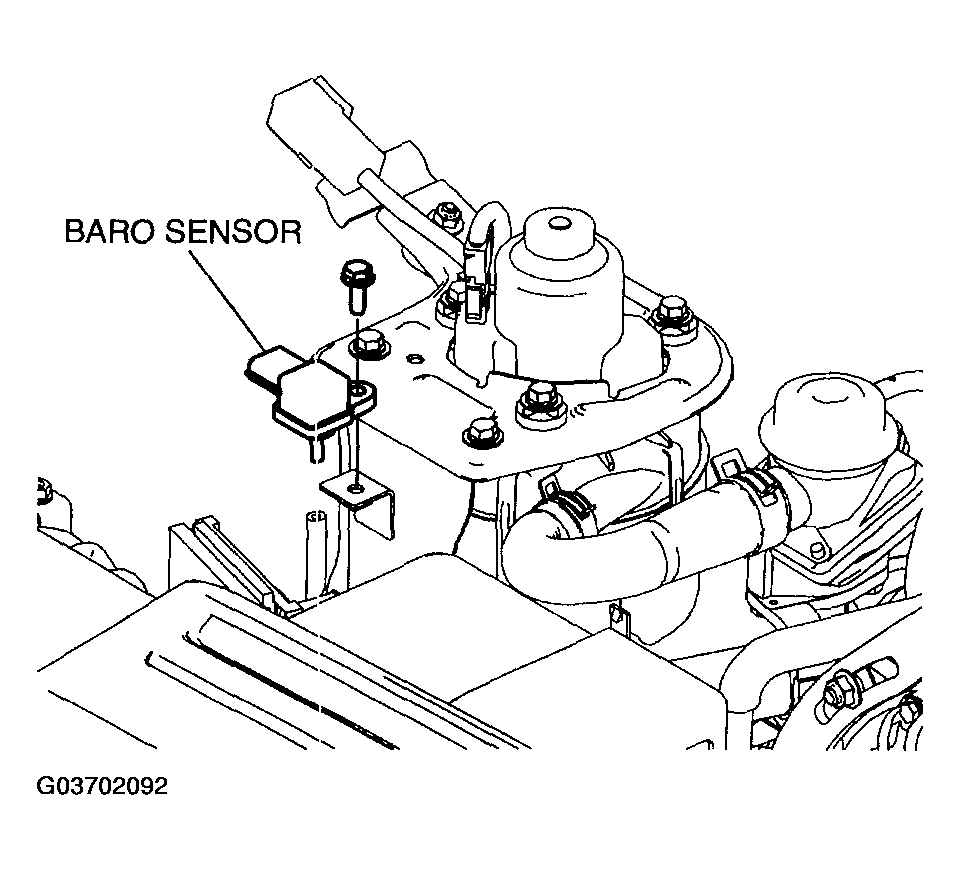

Barometric Pressure (BARO) Sensor Removal/Installation
WARNING: This page is about a different car, the 2005 Mazda RX-8 and 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the BARO sensor connector.
- Remove the BARO sensor installation bolt and remove the BARO sensor.
- Install in the reverse order of removal.
BARO sensor tightening torque
- 7.8-10.8 N.m {80-110 kgf.cm, 69-95 in.lbf}
Courtesy of MAZDA MOTORS CORP.
