Freeze Frame PID Data Access Procedure

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Perform the necessary vehicle preparation and visual inspection.
  2. Connect the WDS or equivalent to the vehicle DLC-2 16-pin connector located in the driver compartment.
  3. Record the freeze frame PID data using the WDS or equivalent.

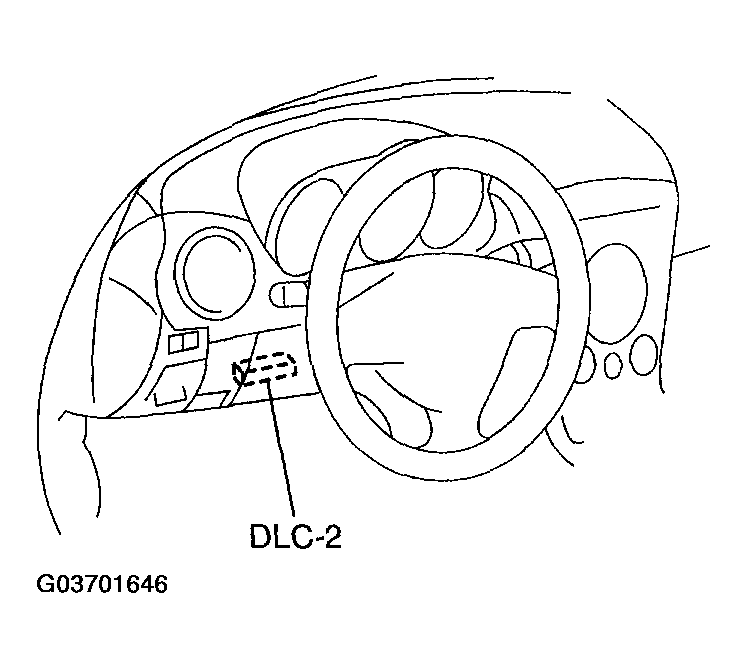

    Fig 1: Identifying DLC-2 Connector
    G03701646Courtesy of MAZDA MOTORS CORP.
