DTC P0030: Notes

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

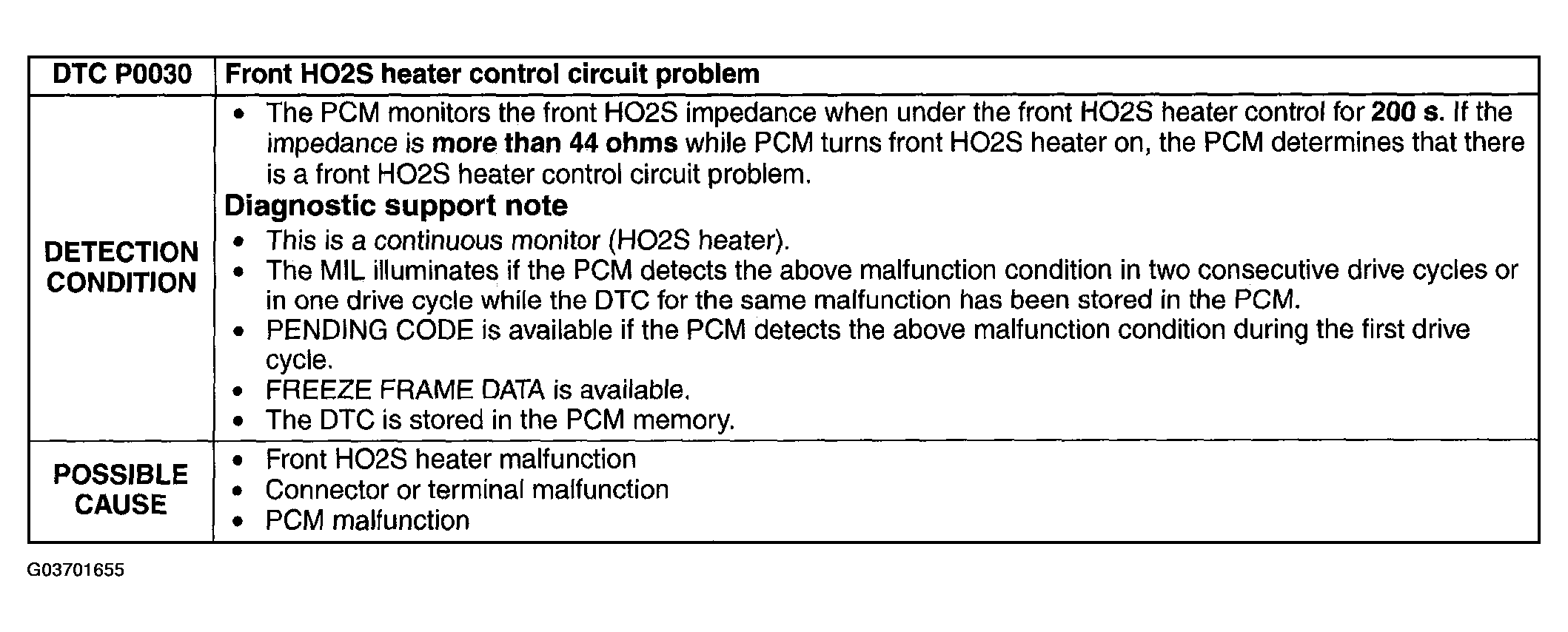

Fig 1: DTC P0030 Detection Condition & Possible Cause
G03701655Courtesy of MAZDA MOTORS CORP.
