Control System Wiring Diagram

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

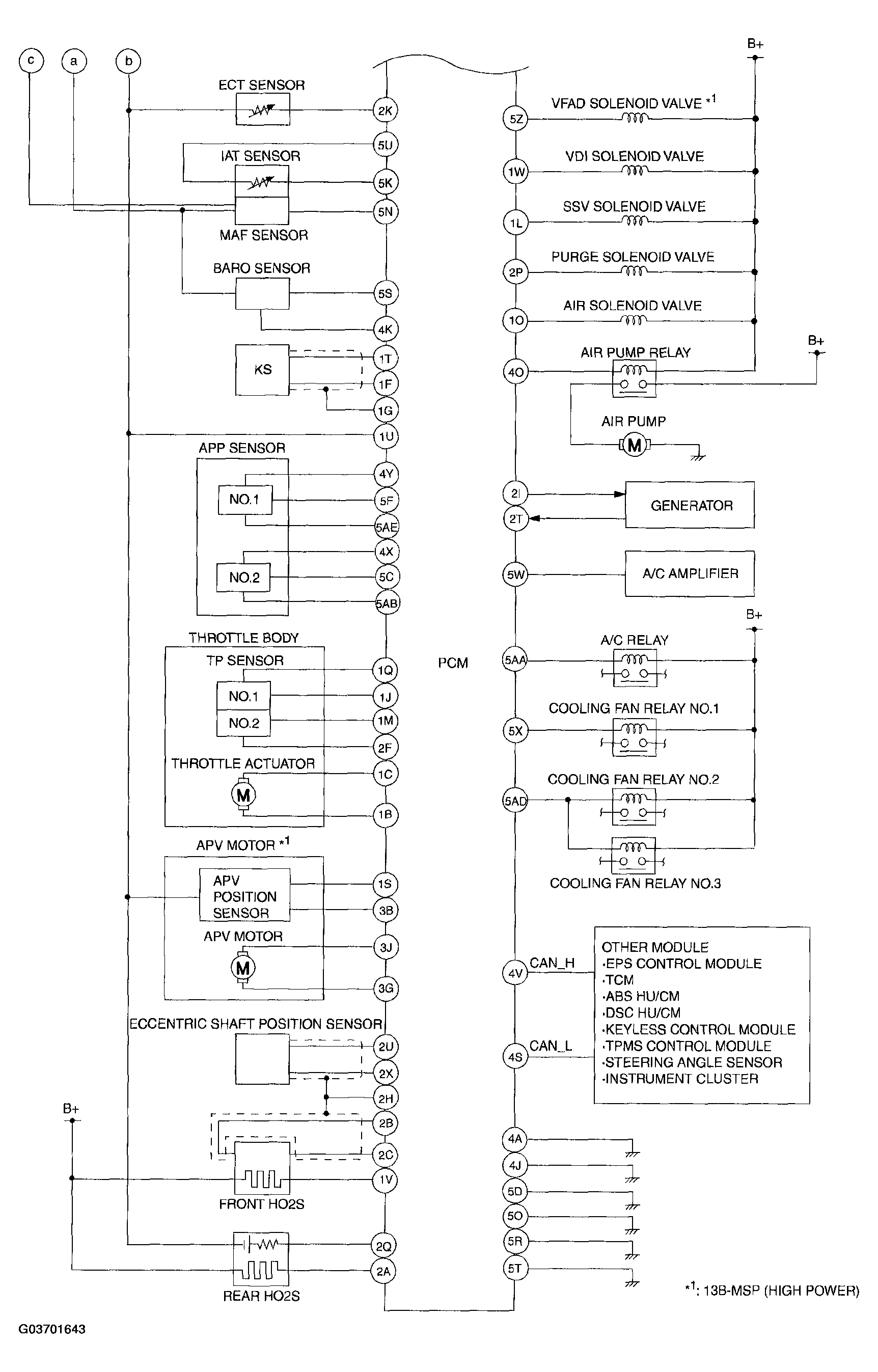

Fig 1: Identifying Control System Wiring Diagram (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

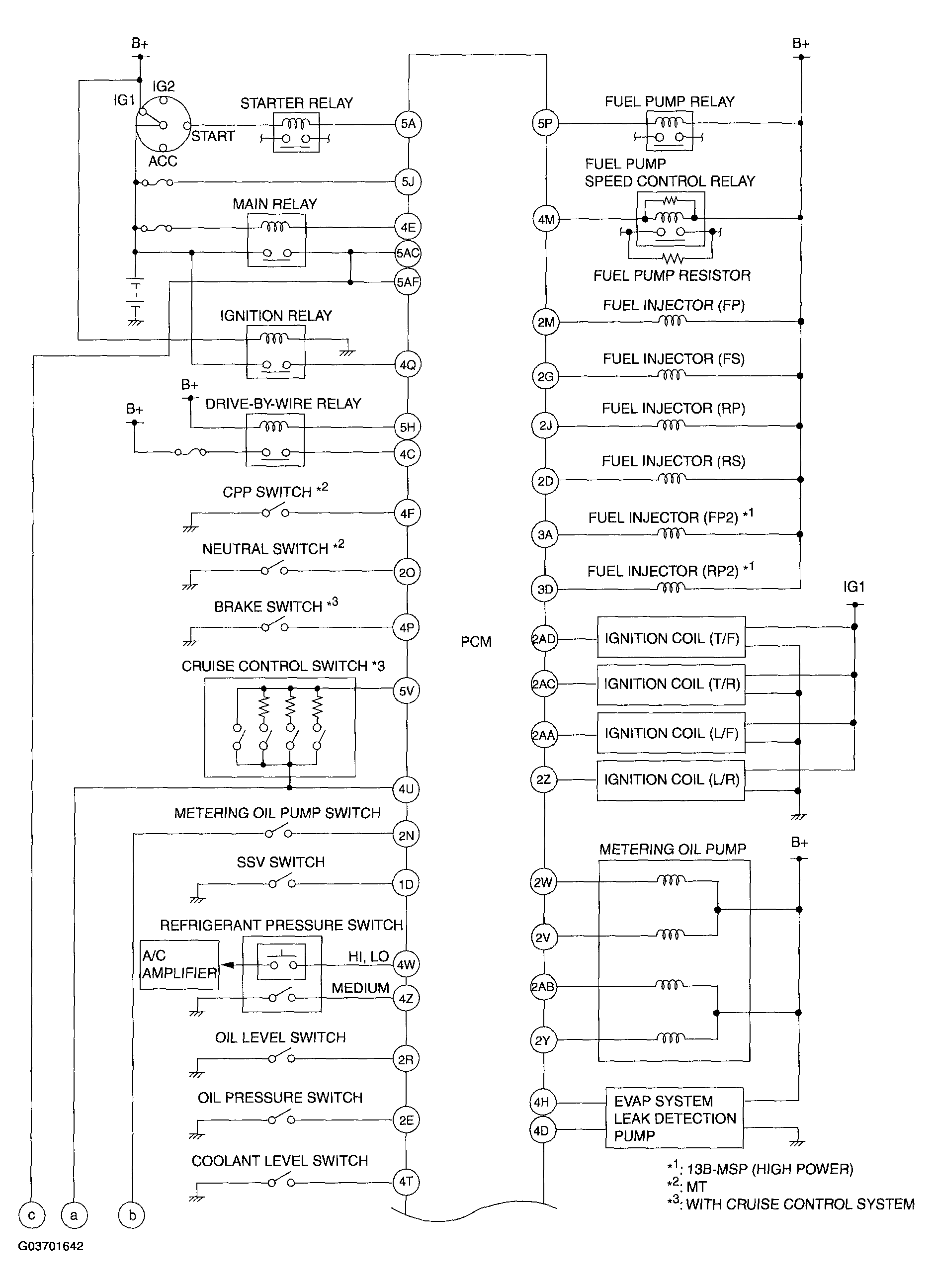

Fig 2: Identifying Control System Wiring Diagram (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
