After Repair Procedure

WARNING: This page is about a different car, the 2005 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the WDS or equivalent to the DLC-2.
  2. Cycle the ignition switch off, then to the ON position (Engine off).
  3. Record DTC if retrieved.
  4. Clear all diagnostic data using the WDS or equivalent.

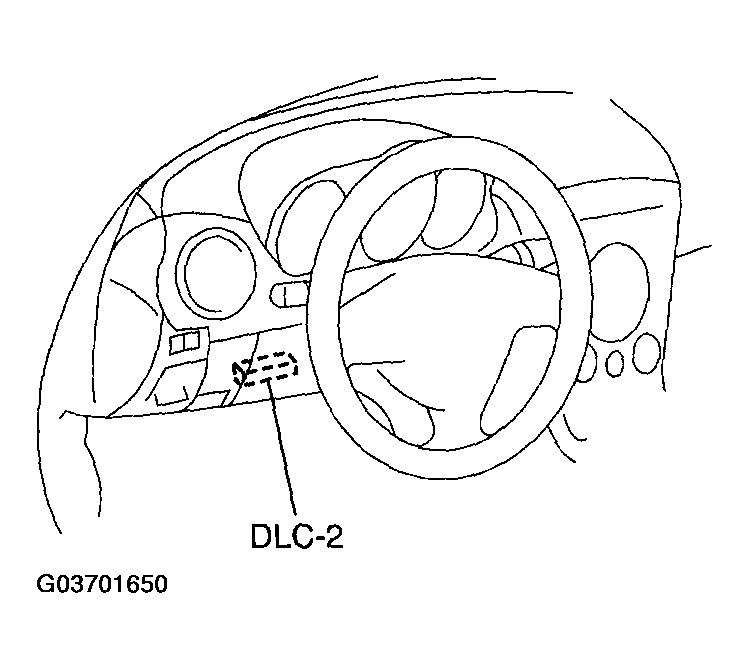

    Fig 1: Identifying DLC-2 Connector
    G03701650Courtesy of MAZDA MOTORS CORP.
