With PSD

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the sliding door lock actuator connector.
  2. Inspect for continuity between the sliding door lock-link switch terminals using an ohmmeter.
    • If not as specified, replace the sliding door lock actuator.

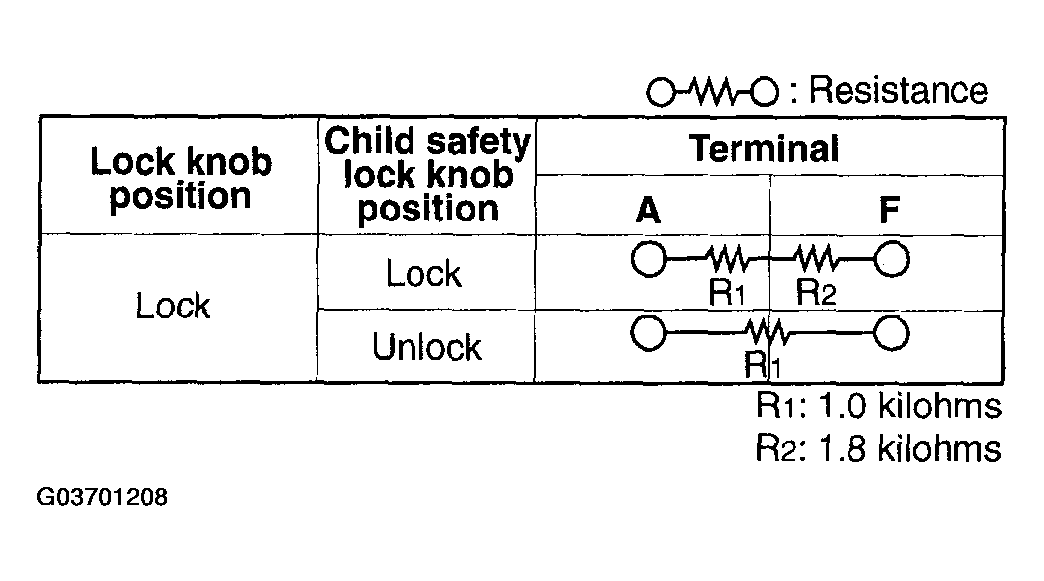

    Fig 1: Sliding Door Lock-Link Switch Terminals Continuity Chart (With PSD)
    G03701208Courtesy of MAZDA MOTORS CORP.

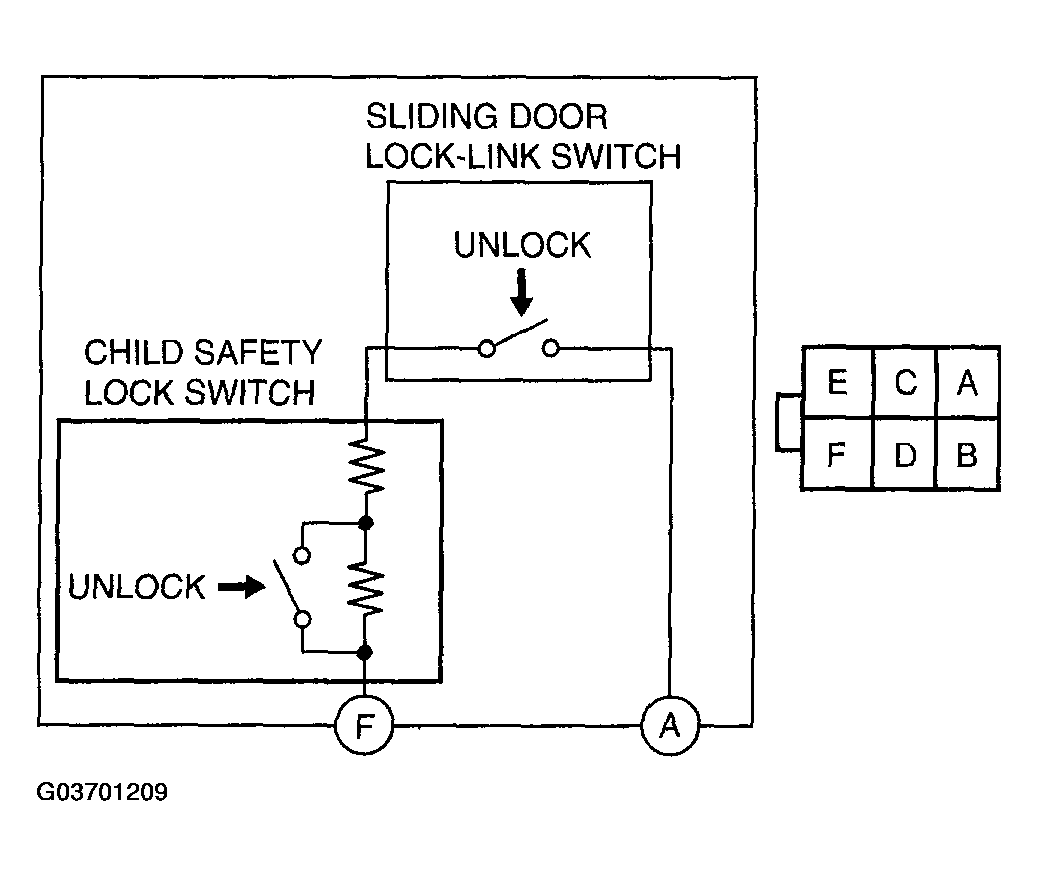

    Fig 2: Inspecting Sliding Door Lock-Link Switch Continuity (With PSD)
    G03701209Courtesy of MAZDA MOTORS CORP.
