Liftgate Lock Cylinder Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the liftgate lock cylinder switch connector.
  2. Inspect for continuity between the liftgate lock cylinder switch terminals using an ohmmeter.
    • If not as specified, replace the liftgate lock cylinder switch.

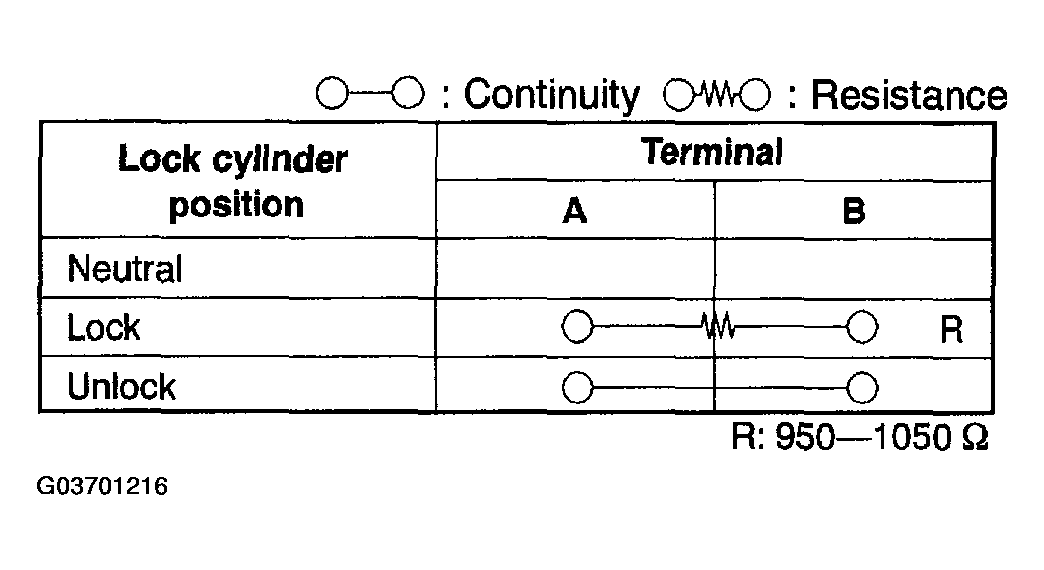

    Fig 1: Lock Cylinder Position And Terminals Continuity Chart
    G03701216Courtesy of MAZDA MOTORS CORP.

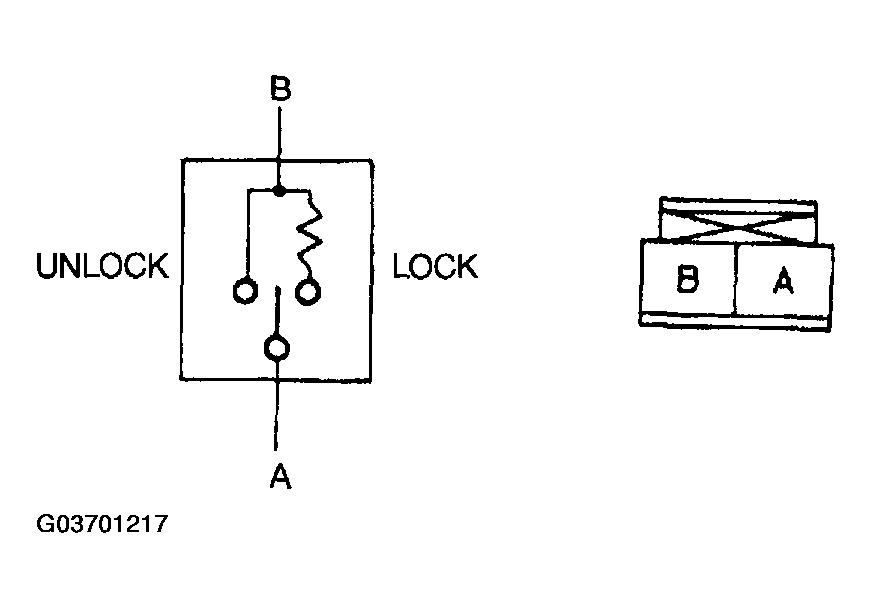

    Fig 2: Inspecting Liftgate Lock Cylinder Switch Continuity
    G03701217Courtesy of MAZDA MOTORS CORP.
