Hood Lock And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove in the order indicated in the table.

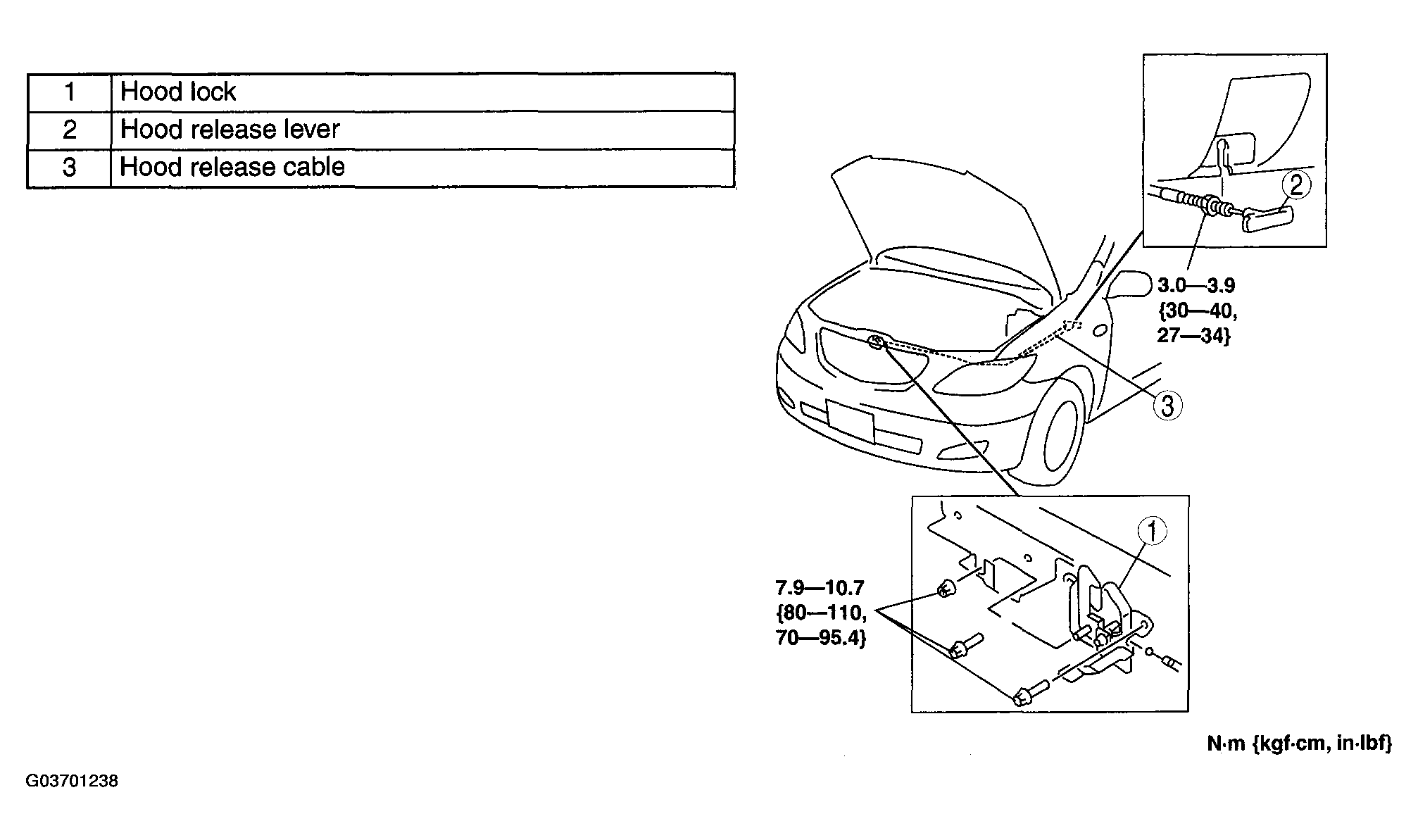

    Fig 1: Removing Hood Lock And Opener - With Torque Specifications
    G03701238Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
