Front Door Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the front door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door screen. (See FRONT DOOR LOCK AND OPENER REMOVAL/INSTALLATION .)
  4. Disconnect the front door lock actuator connector.
  5. Disconnect the rods and the cables.
  6. Remove the screws, and remove the front door lock.
  7. Remove the screws, and remove the front door lock actuator from the front door lock.

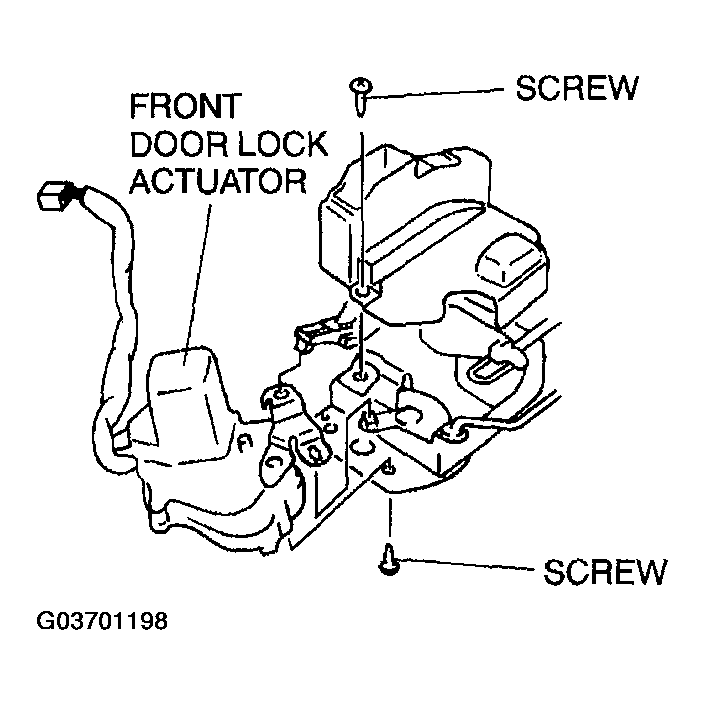

    Fig 1: Removing Front Door Lock Actuator
    G03701198Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
