Door Key Cylinder Switch Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.
  1. Close the door glass completely.
  2. Disconnect the negative battery cable.
  3. Remove the door screen. (See FRONT DOOR LOCK AND OPENER REMOVAL/INSTALLATION .)
  4. Disconnect the door key cylinder switch connector.
  5. Disconnect the rods.
  6. Remove the nuts, and remove the outer handle.
  7. Remove the pin, and remove the door key cylinder switch from the outer handle.
  8. Install in the reverse order of removal.

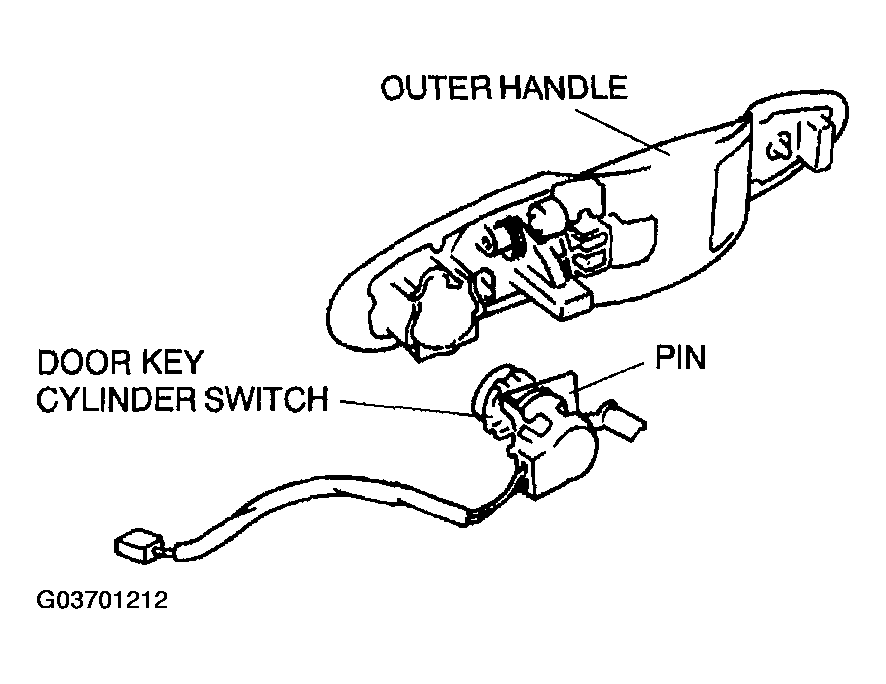

    Fig 1: Identifying Door Key Cylinder Switch Removal/Installation Procedure
    G03701212Courtesy of MAZDA MOTORS CORP.
