DTC C1947, C1948, C1981: Seat Track Position Sensor Circuit Short To Body Ground; Seat Track Position Sensor Circuit Resistance Not Within Specification; Seat Track Position Sensor Circuit Open Or Short To Power Supply: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

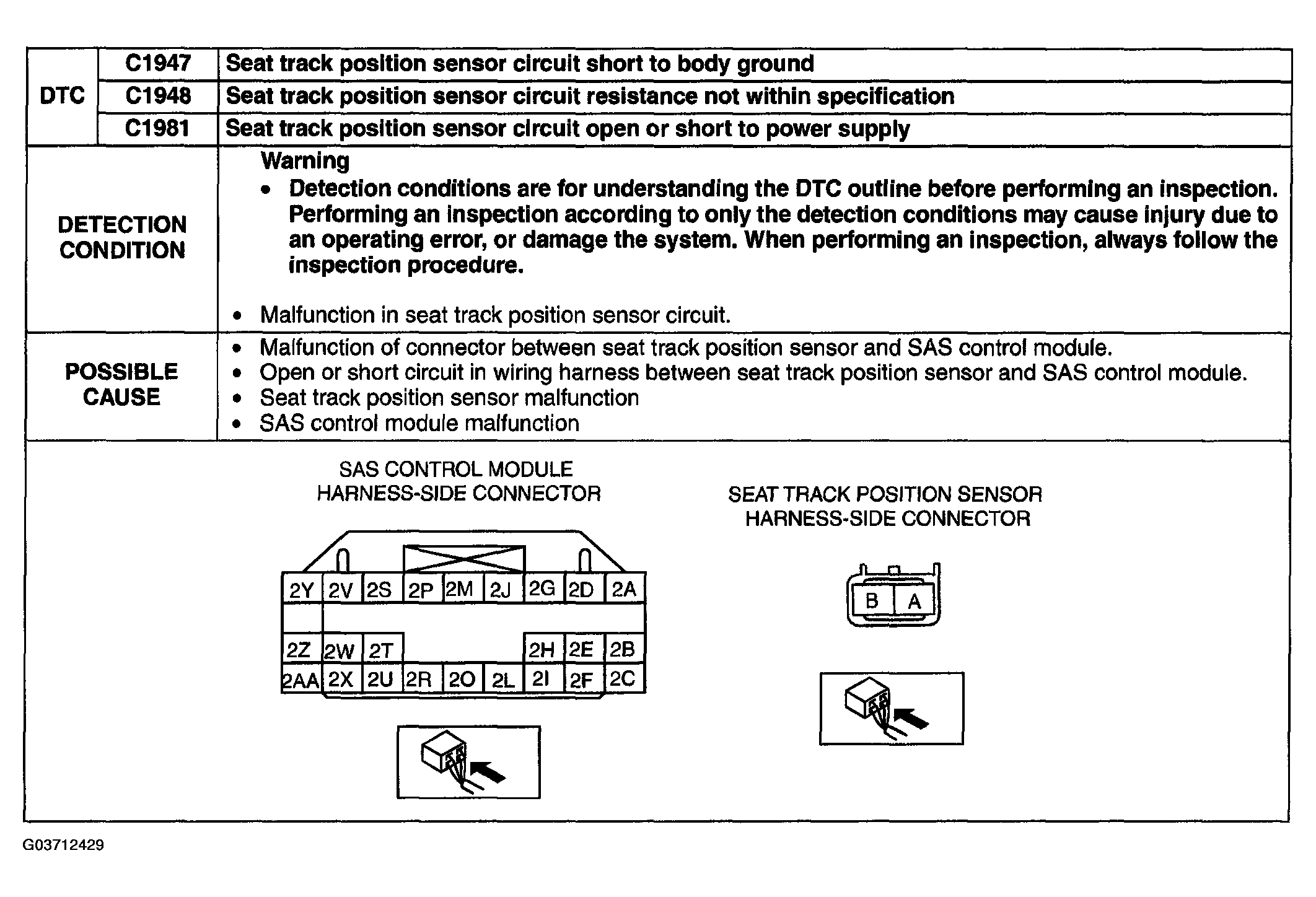

Fig 1: DTC C1947, C1948, C1981 - Detection Condition And Possible Cause Chart
G03712429Courtesy of MAZDA MOTORS CORP.
