DTC B2867: Poor Connection Of Any SAS Control Module Connectors: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

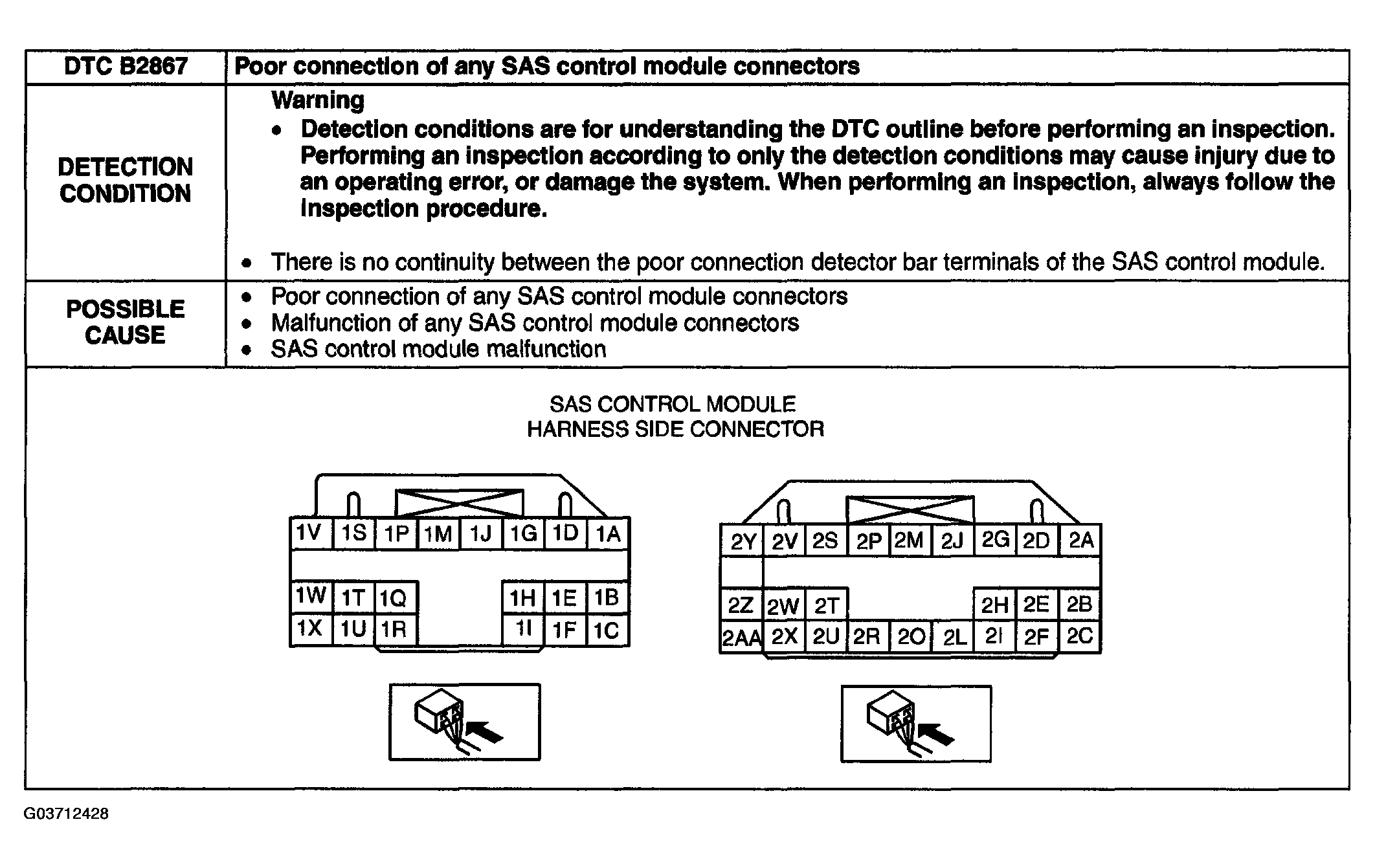

Fig 1: DTC B2867 - Detection Condition And Possible Cause Chart
G03712428Courtesy of MAZDA MOTORS CORP.
