DTC B2438, B2439, B2692: Passenger-Side Front Buckle Switch Circuit Short To Body Ground; Passenger-Side Front Buckle Switch Circuit Resistance Not Within Specification; Passenger-Side Front Buckle Switch Circuit Open Or Short To Power Supply: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

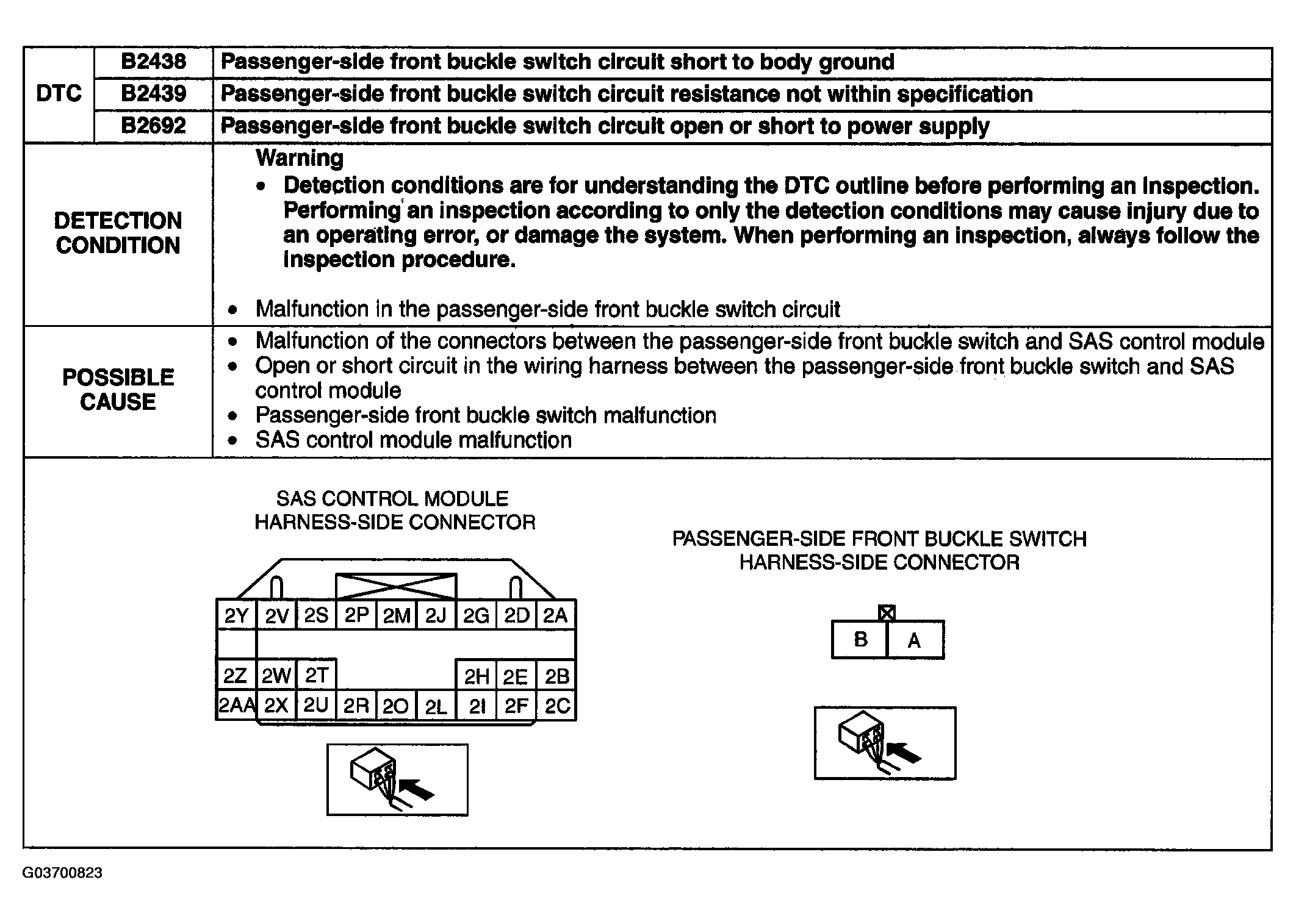

Fig 1: DTC B2438, B2439, B2692 - Detection Condition And Possible Cause Chart
G03700823Courtesy of MAZDA MOTORS CORP.
