DTC B2434, B2435, B2691: Driver-Side Front Buckle Switch Circuit Short To Body Ground; Driver-Side Front Buckle Switch Circuit Resistance Not Within Specification; Driver-Side Front Buckle Switch Circuit Open Or Short To Power Supply: Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

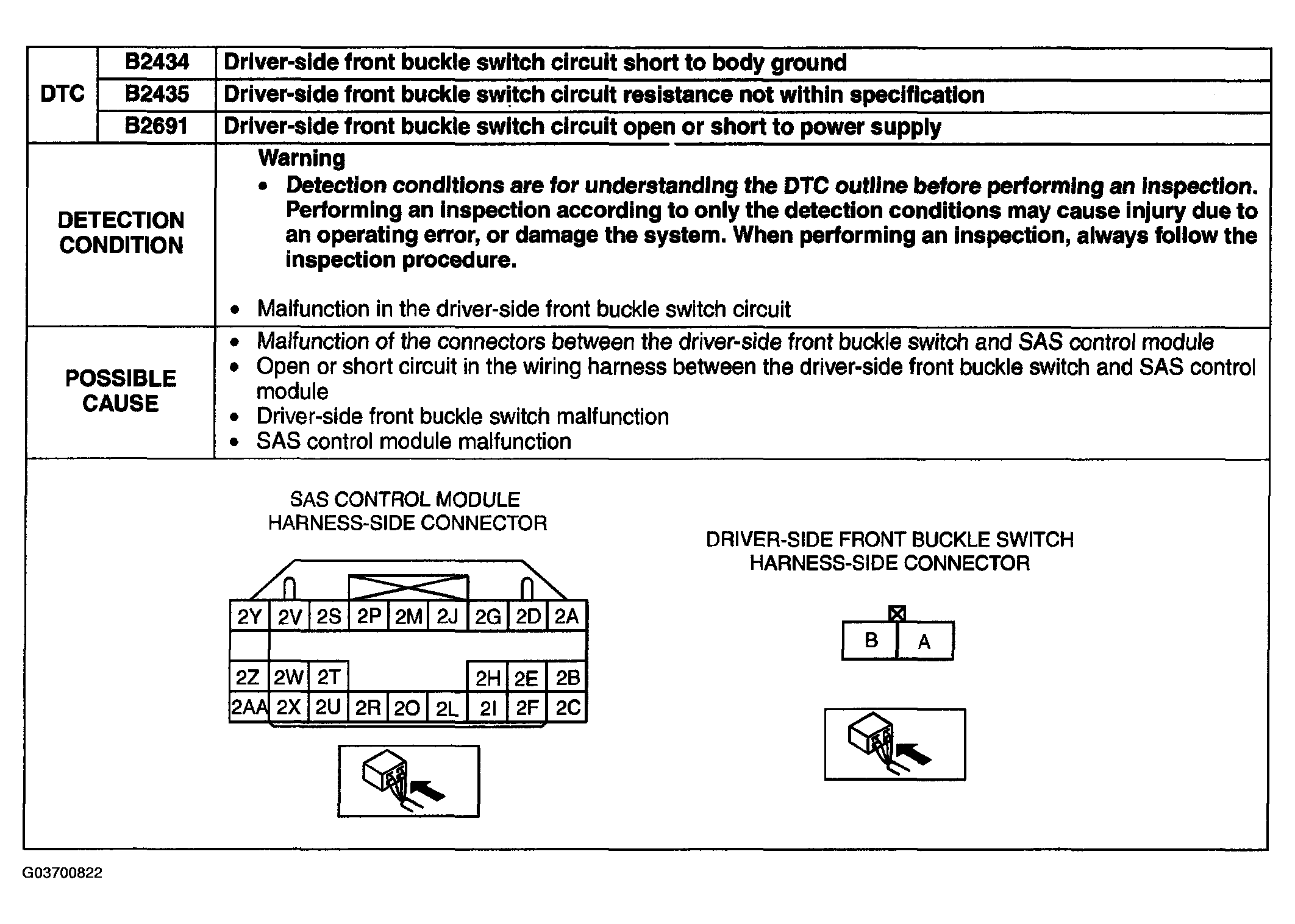

Fig 1: DTC B2434, B2435, B2691 - Detection Condition And Possible Cause Chart
G03700822Courtesy of MAZDA MOTORS CORP.
