DTC B2296: Crash Zone Sensor (Communication Error, Internal Circuit Abnormal): Notes

WARNING: This page is about a different car, the 2005 Mazda MPV. However, it is still accessible from the selected car via links, so may be relevant.

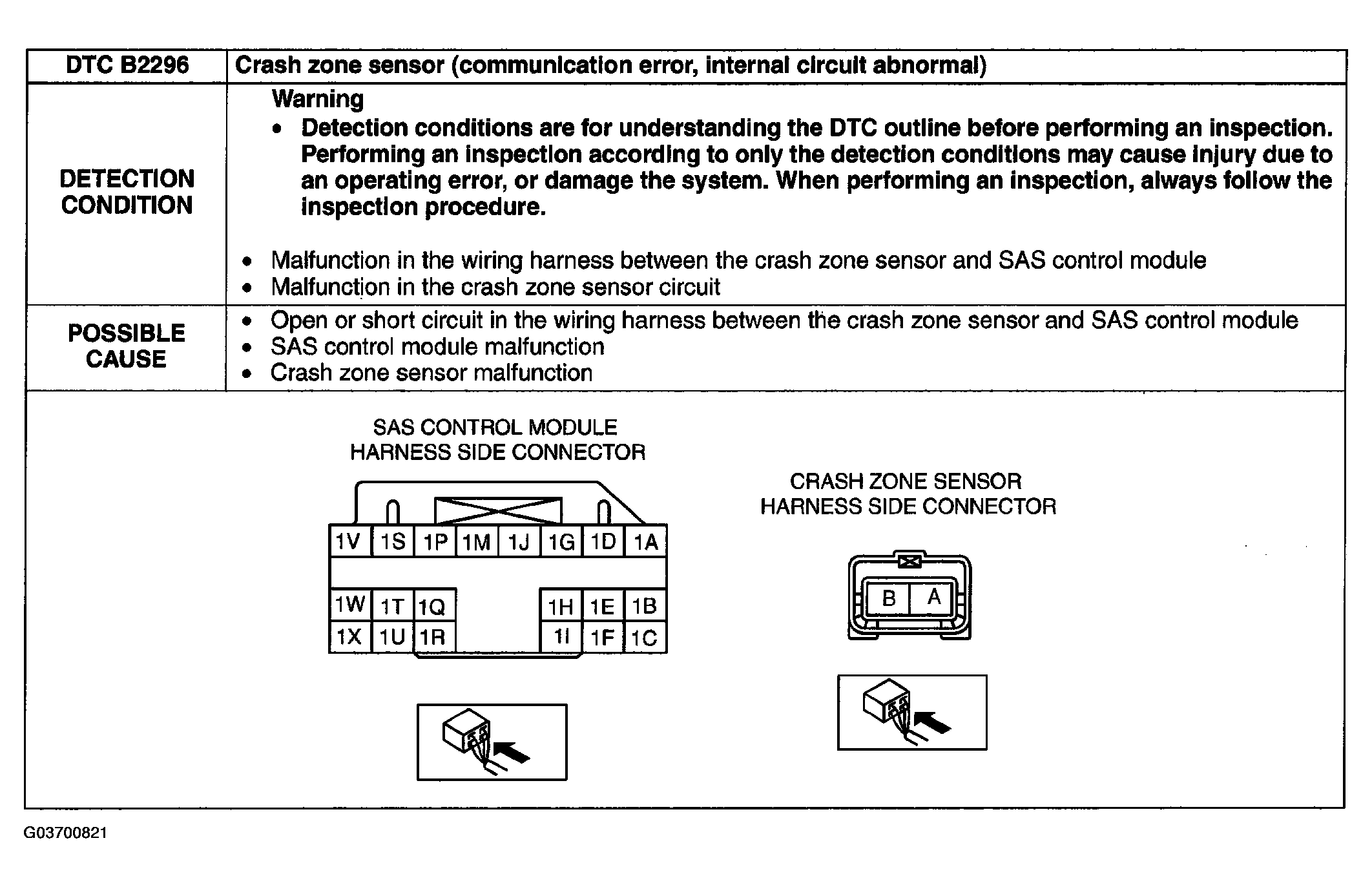

Fig 1: DTC B2296 - Detection Condition And Possible Cause Chart

Courtesy of MAZDA MOTORS CORP.
