Trunk Lid Opener Removal/Installation [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the trunk lid opener connector.
  3. Squeeze the tabs of the connector and pull it downward to remove it.
  4. Disconnect the rod
  5. Remove the bolts
  6. Install in the reverse order of removal.

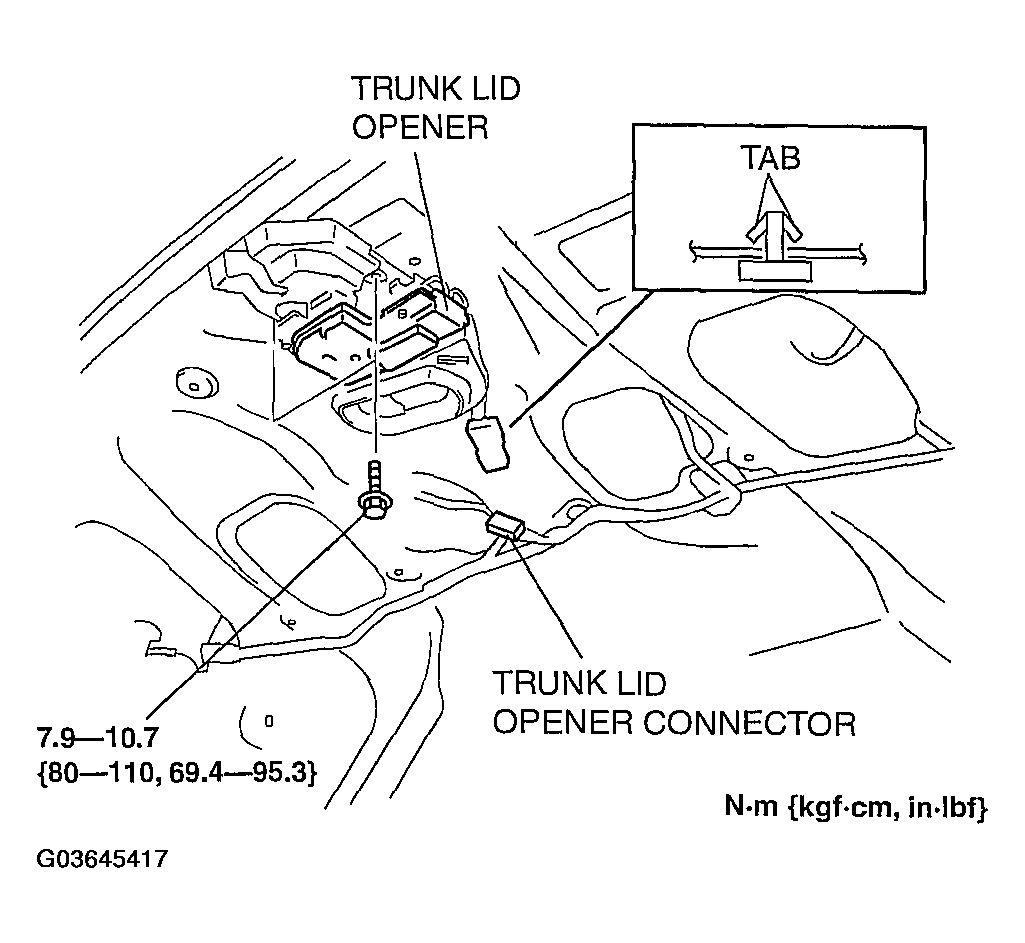

    Fig 1: Removing/Installing Trunk Lid Opener [Sedan] (Torque Specs)
    G03645417Courtesy of MAZDA MOTORS CORP.
