Trunk Key Cylinder Switch Inspection [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk key cylinder switch.
  2. Inspect for continuity between the trunk key cylinder switch terminals using an ohmmeter.
    • If not as specified, replace the trunk key cylinder switch.

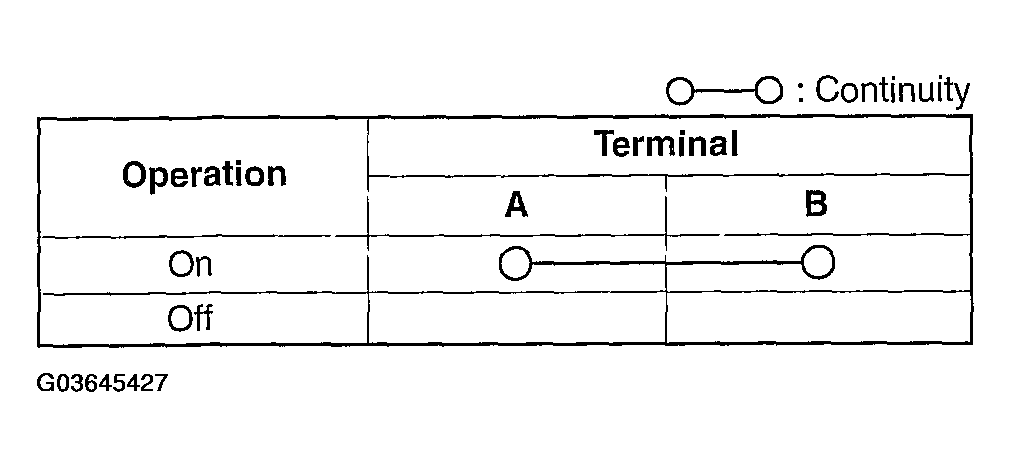

      Fig 1: Trunk Key Cylinder Switch Continuity Table
      G03645427Courtesy of MAZDA MOTORS CORP.

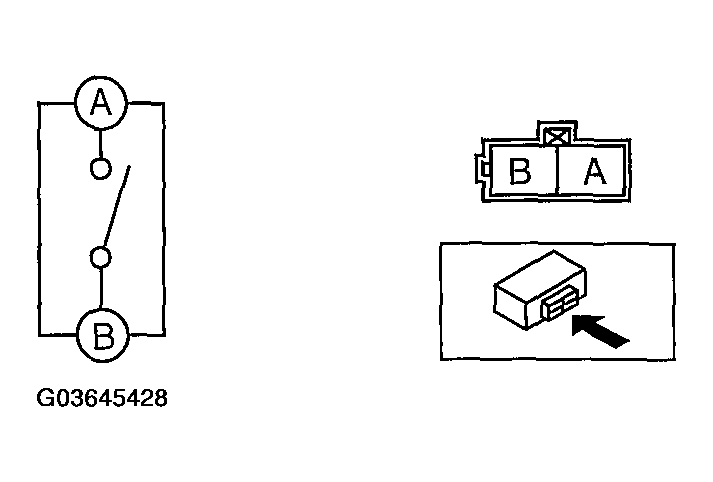

      Fig 2: Trunk Key Cylinder Switch Circuit Diagram And Connector Terminals
      G03645428Courtesy of MAZDA MOTORS CORP.
