Trunk Key Cylinder Removal/Installation [Sedan]

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk key cylinder switch connector.
  3. Remove the nuts
  4. Remove the trunk key cylinder.
  5. Install in the reverse order of removal.

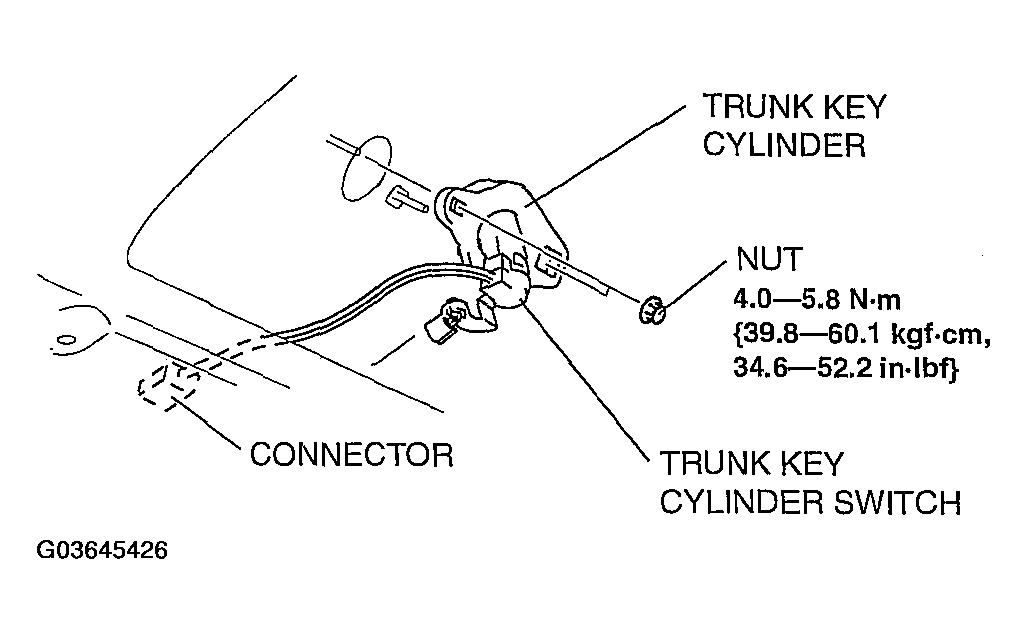

    Fig 1: Removing/Installing Trunk Key Cylinder [Sedan] (Torque Specs)
    G03645426Courtesy of MAZDA MOTORS CORP.
