Rear Outer Handle Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the rear door glass.
  2. Remove the rear door unit.
  3. Remove the rear door latch.
  4. Remove the bolts.

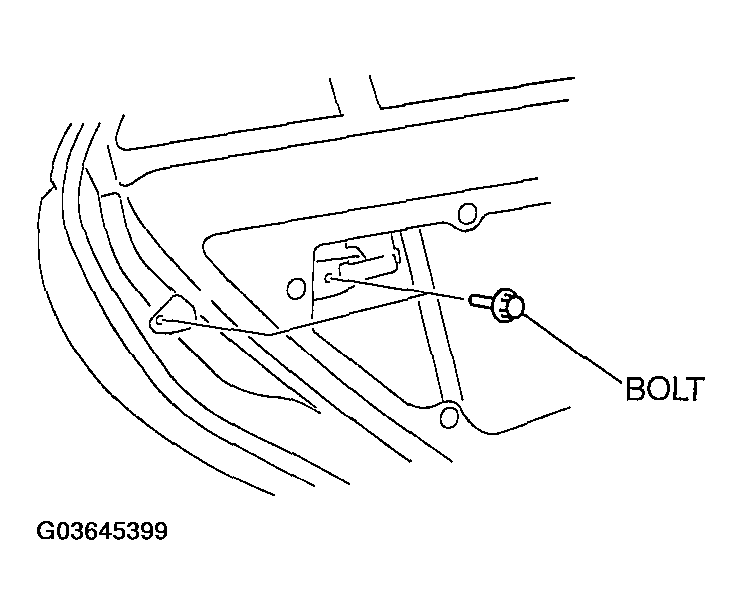

    Fig 1: Removing Rear Outer Handle Bolts
    G03645399Courtesy of MAZDA MOTORS CORP.
  5. Detach the rear outer handle and rear door latch rod.
  6. With the rear side of the rear outer handle fixed and the outer handle lever pulled out (1), remove the rear side of the rear outer handle from the rear door.
  7. Pull out the front side of the rear outer handle from the rear door.

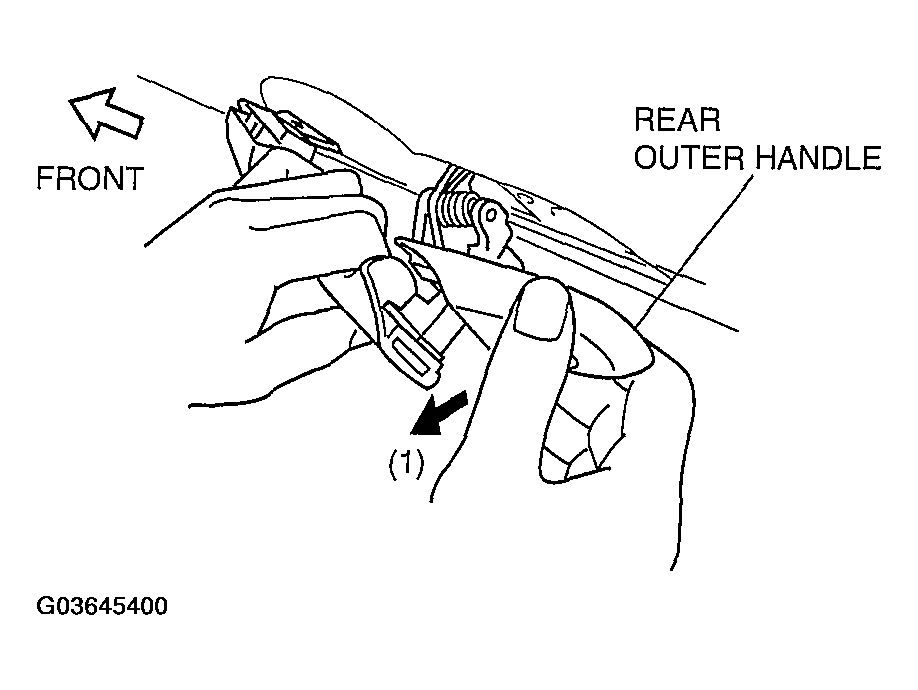

    Fig 2: Pulling Out Front Side Of Rear Outer Handle
    G03645400Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
