Fuel-Filler Lid And Opener Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. To remove the fuel-filler lid opener, remove the left side trunk side trim.
  2. To remove the fuel-filler lid opener cable, perform the following and partially peel back the floor covering.
    1. Remove the driver-side front seat.
    2. Remove the driver-side front scuff plate.
    3. Remove the driver-side rear scuff plate.
    4. Remove the driver-side B-pillar lower trim.
    5. Remove the driver-side tire house trim.
  3. Remove in the order indicated in the table.

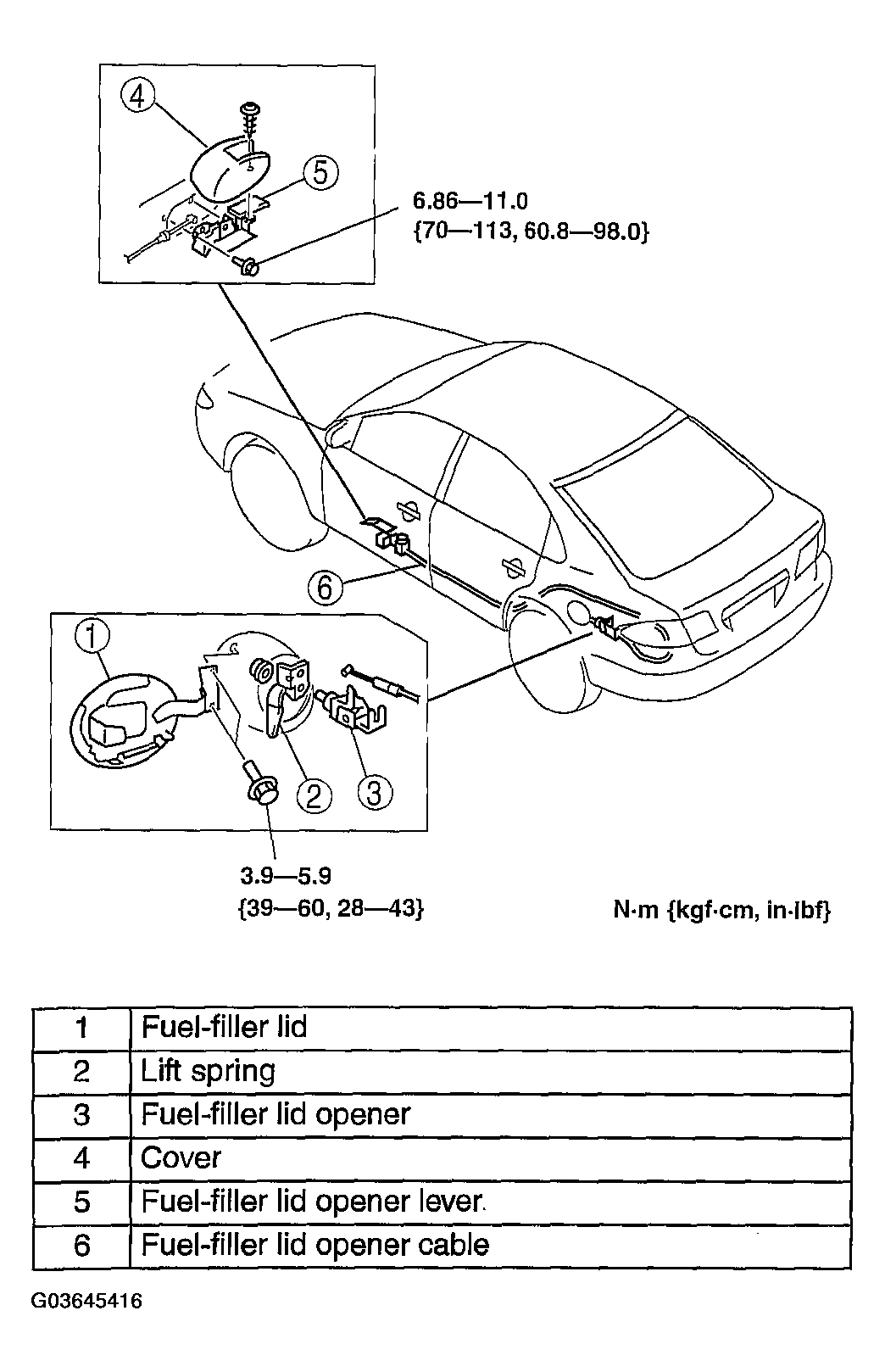

    Fig 1: Fuel-Filler Lid And Opener Removal Sequence (Torque Specs)
    G03645416Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
  5. Adjust the fuel-filler lid. (See FUEL-FILLER LID ADJUSTMENT .)
