Front Door Latch And Lock Actuator Removal/Installation

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front door unit.
  2. Remove the screws, then remove the front door latch and door lock actuator.

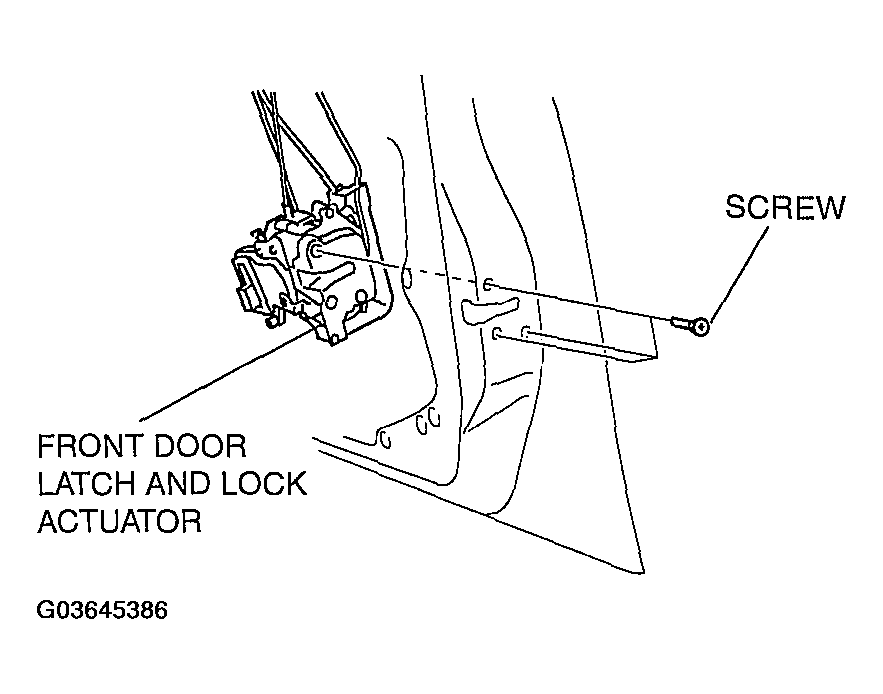

    Fig 1: Removing/Installing Front Door Latch And Lock Actuator
    G03645386Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
