Door Lock Switch Inspection

WARNING: This page is about a different car, the 2005 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove the door lock switch.
Inspect for continuity between the door lock switch terminals using an ohmmeter.
- If not as specified, replace the door lock switch.

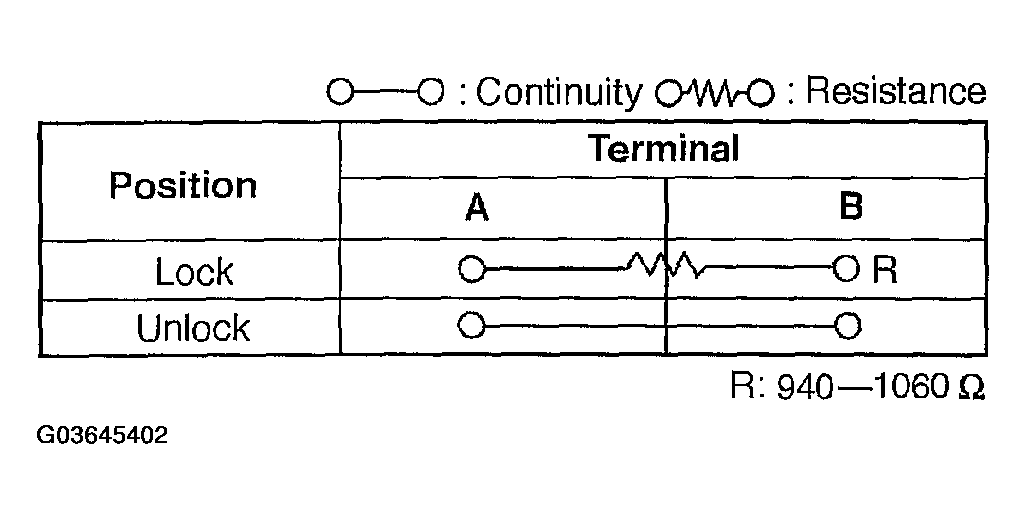

  Fig 1: Door Lock Switch Continuity Table
  Courtesy of MAZDA MOTORS CORP.

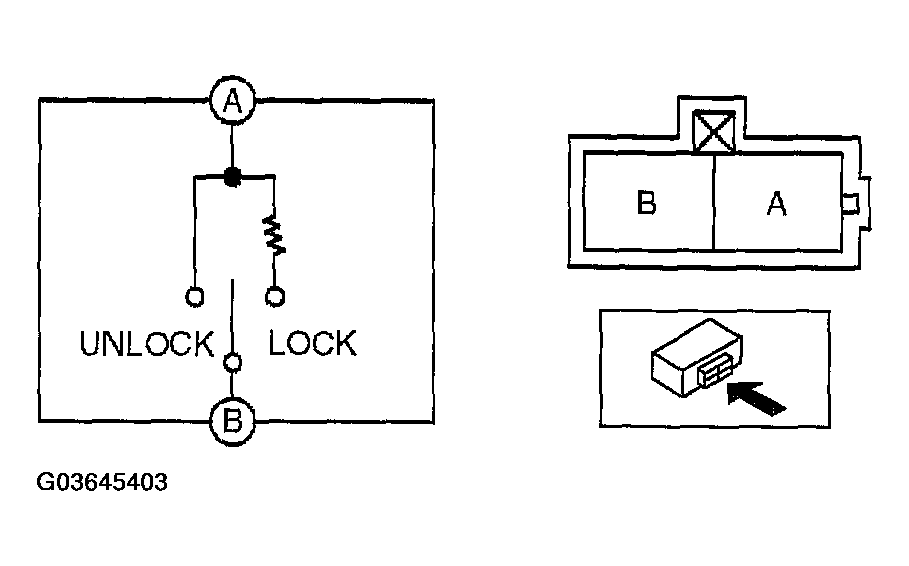

  Fig 2: Door Lock Switch Circuit Diagram And Connector Terminals
  Courtesy of MAZDA MOTORS CORP.
