Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable; for additional information, refer to BATTERY DISCONNECT .
  2. Pull the tilt wheel lever down in open position, as necessary.

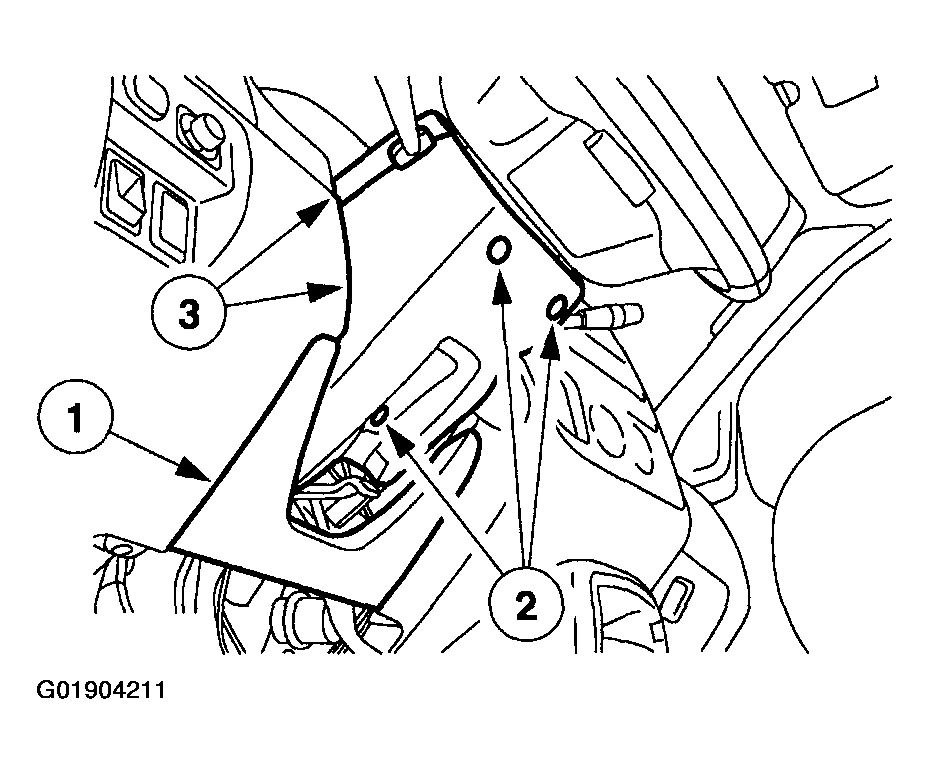

    Fig 1: Removing Lower Instrument Panel Steering Column Cover
    G01904211Courtesy of MAZDA MOTORS CORP.
  3. Remove the lower instrument panel steering column cover.
    1. Remove the lower instrument panel steering column cover.
    2. Remove the screws.
    3. Remove the upper and lower steering column shrouds.

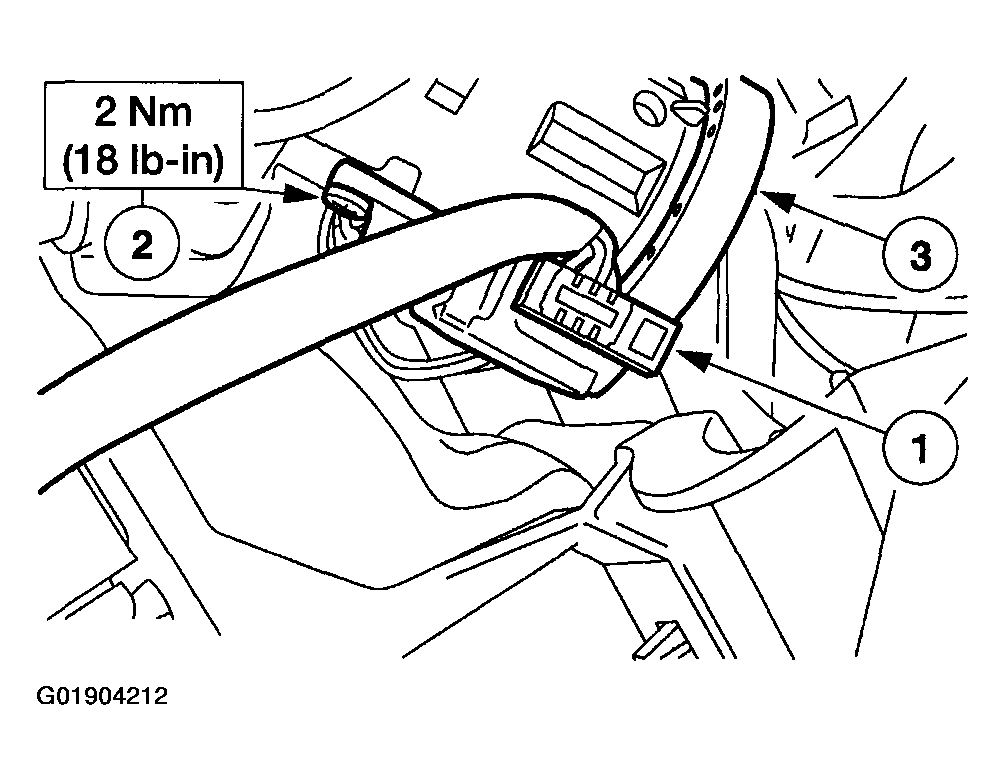

      Fig 2: Removing Transceiver Assembly
      G01904212Courtesy of MAZDA MOTORS CORP.
  4. Remove the transceiver assembly.
    1. Disconnect the electrical connector.
    2. Remove the screw.
    3. Remove the transceiver assembly.
      NOTE:
      • No key replacement or re-initialization needs to occur with the removal or installation of a new PATS transceiver.
  5. To install, reverse the removal procedure.
