Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Individual lock cylinders are repaired by discarding the inoperative cylinder and building a new lock cylinder using the appropriate lock repair package. The lock repair package includes a detailed instruction sheet to build the new lock cylinder to the current key code of the vehicle.

Remove the liftgate trim panel.

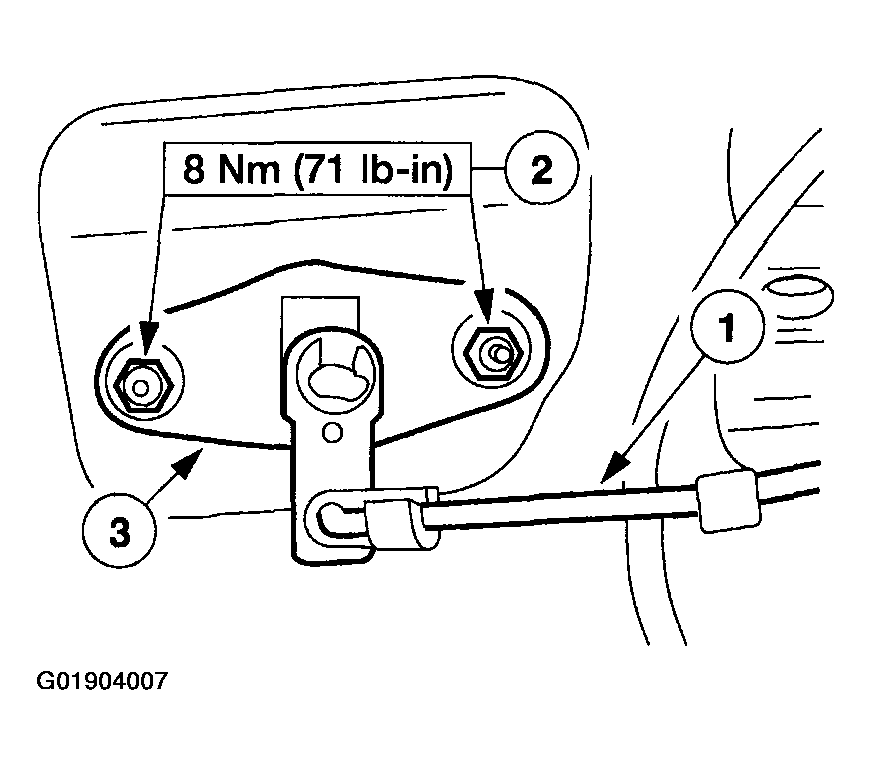

Fig 1: Removing Lock Cylinder
Courtesy of MAZDA MOTORS CORP.
Remove the lock cylinder.
1. Disconnect the actuating rod.
2. Remove the nuts.
3. Remove the lock cylinder.
To install, reverse the removal procedure.
