Removal and Installation

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

Remove the exterior front door handle. Refer to EXTERIOR FRONT DOOR HANDLE .

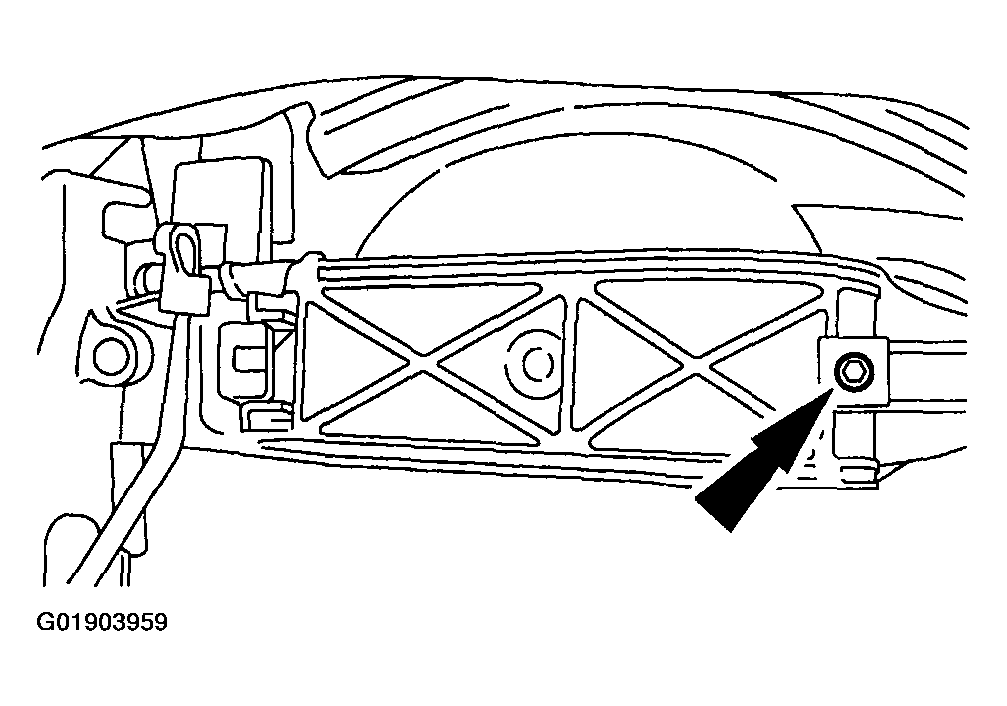

Fig 1: Loosening Screw
Courtesy of MAZDA MOTORS CORP.
Loosen the screw until the door latch remote control is sliding free.

Fig 2: Releasing Clip
Courtesy of MAZDA MOTORS CORP.
Position the interior door handle aside
- Pull to release the clip.

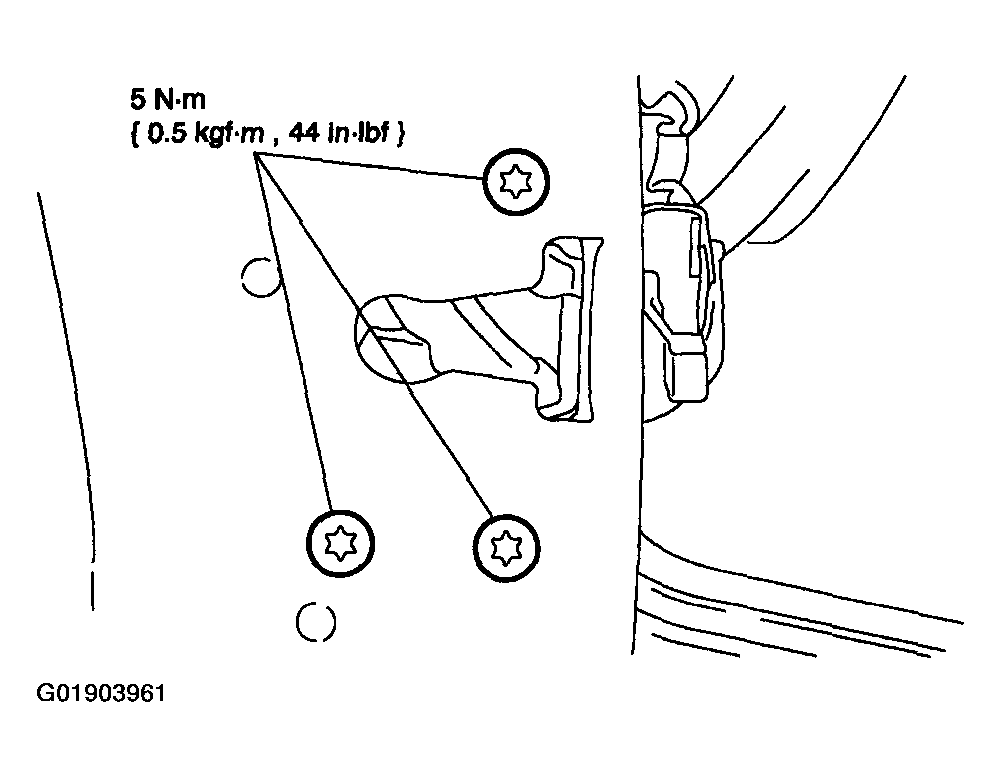

  Fig 3: Removing Door Latch Screws
  Courtesy of MAZDA MOTORS CORP.
Remove and discard the door latch screws.

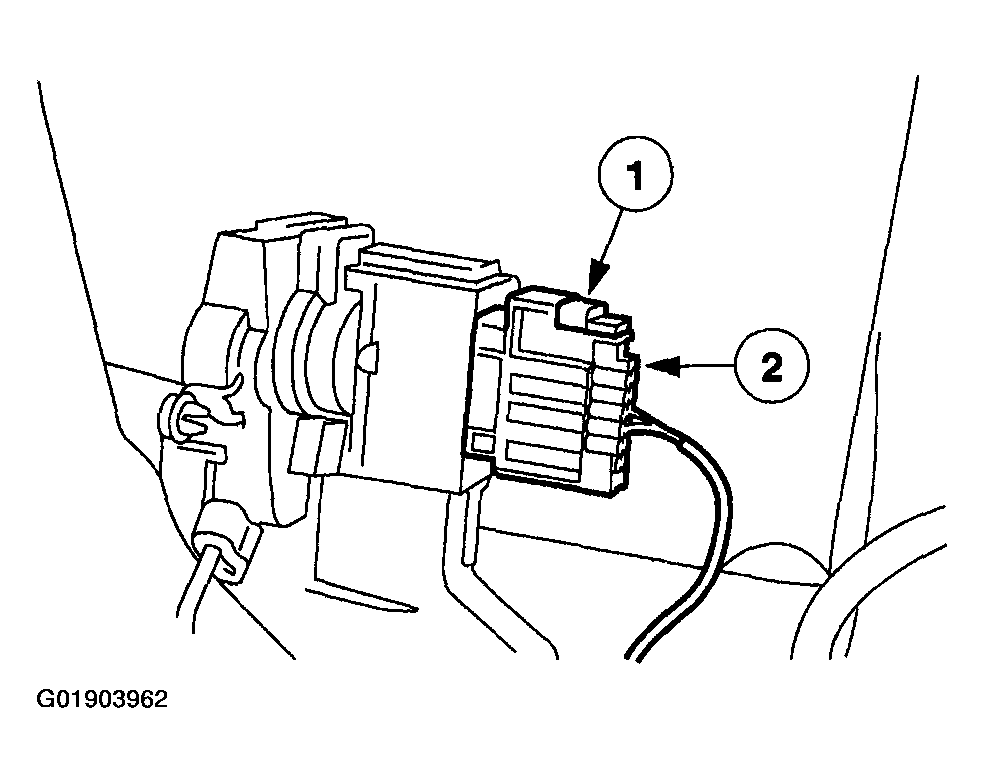

Fig 4: Disconnecting Door Latch Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Disconnect the door latch electrical connector.
1. Release the clip.
2. Disconnect the electrical connector.
Remove the front door latch assembly.
- Slide the door latch remote control towards the front of the vehicle.

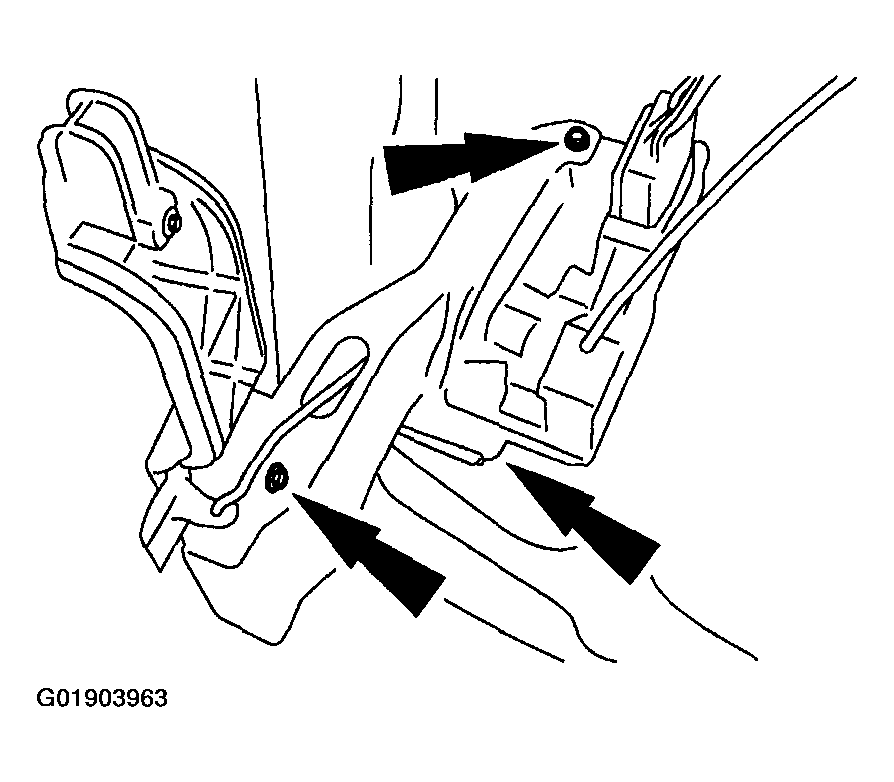

  Fig 5: Removing Anti-Theft Guard Screws
  Courtesy of MAZDA MOTORS CORP.
Remove the screws and position the anti-theft guard aside.

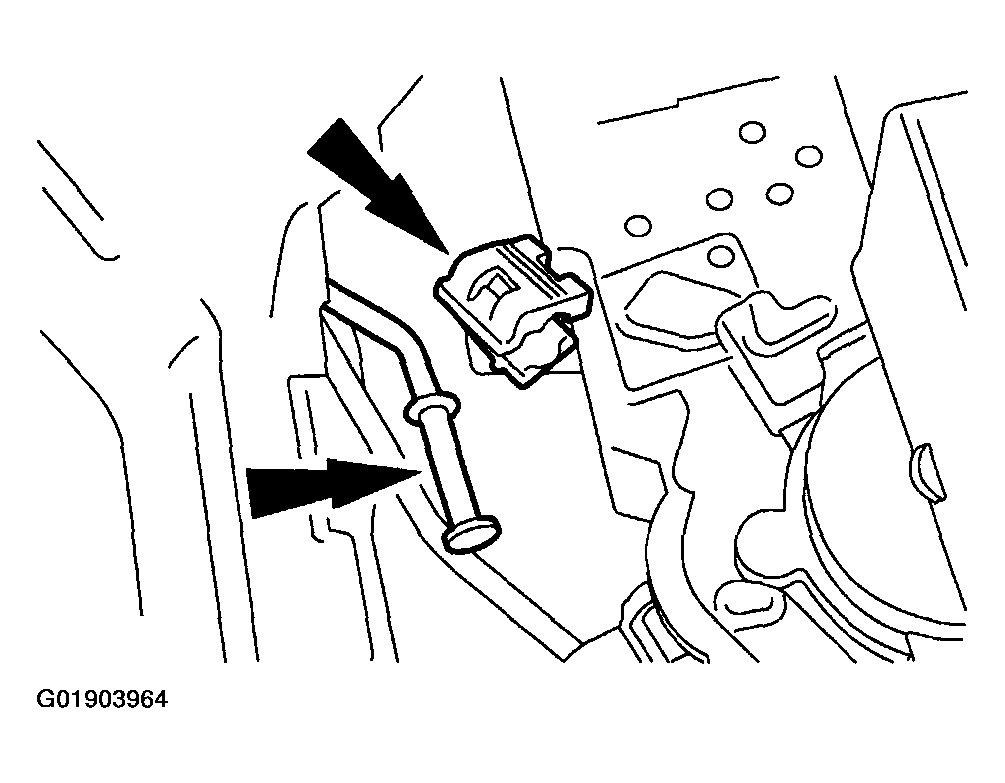

Fig 6: Disconnecting Exterior Door Handle Actuating Rod
Courtesy of MAZDA MOTORS CORP.
Open the clip and disconnect the exterior door handle actuating rod.
Disconnect the lock/unlock rod clip.
NOTE:
- Transfer components as necessary.
To install, reverse the removal procedure.
