Pinpoint Test 7: The Vehicle Does Not Start - The Anti-Theft Led Proves Out Normally
WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

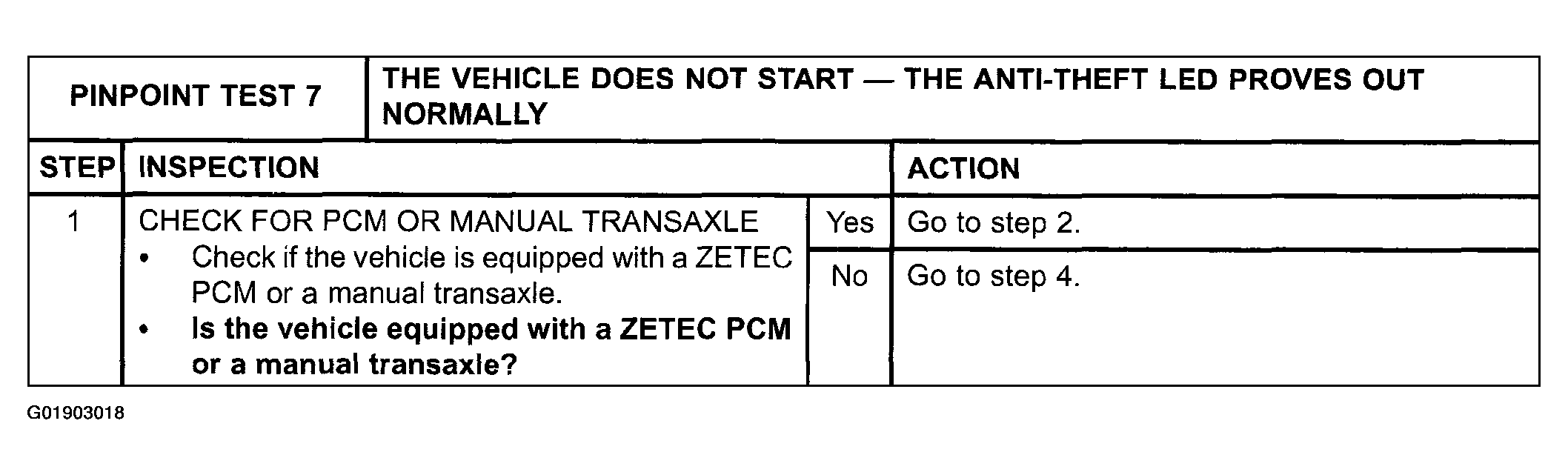

Fig 1: Pinpoint Test 7: Vehicle Does Not Start - Anti-Theft Led Proves Out Normally (Step 1)
Courtesy of MAZDA MOTORS CORP.

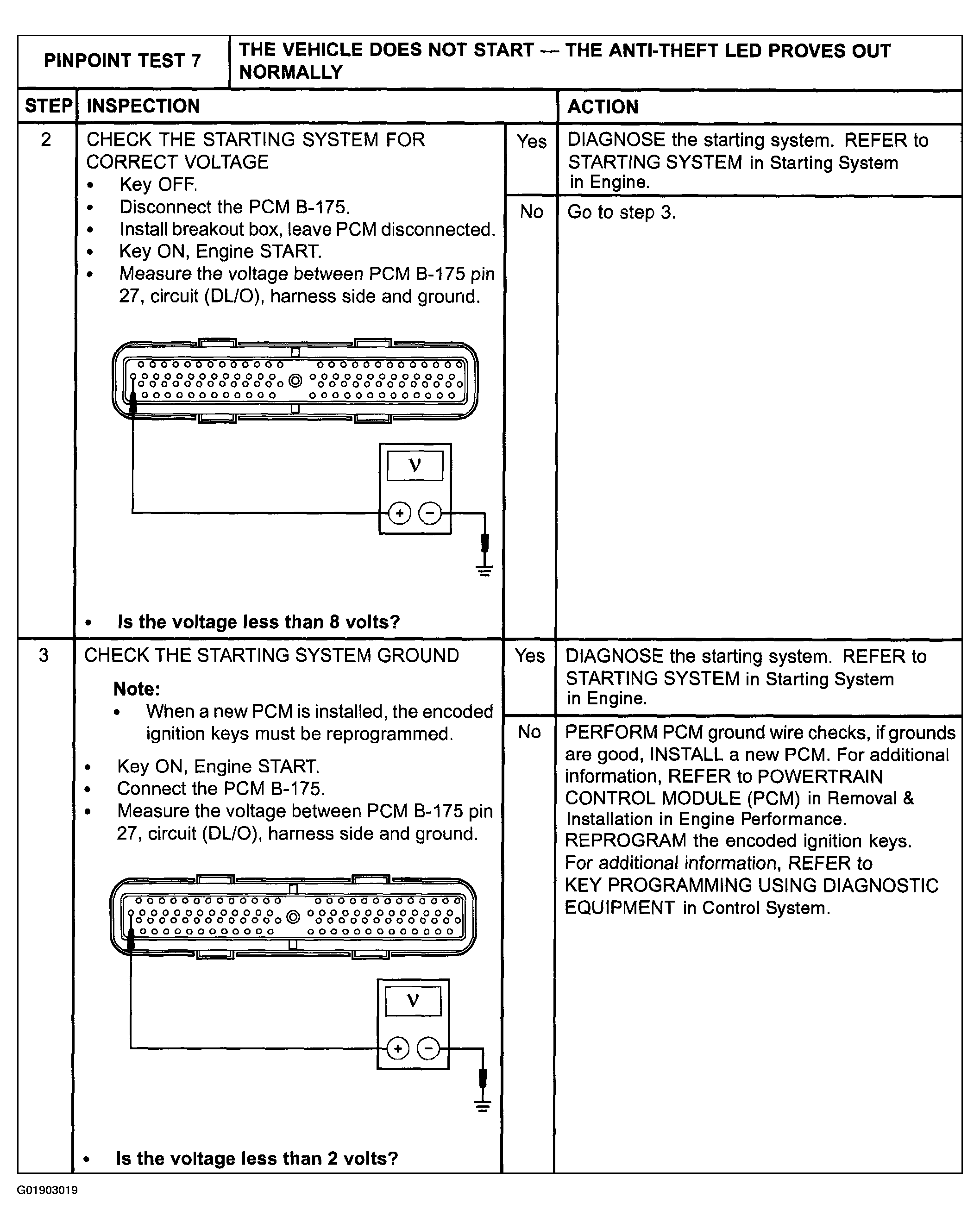

Fig 2: Pinpoint Test 7: Vehicle Does Not Start - Anti-Theft Led Proves Out Normally (Steps 2-3)
Courtesy of MAZDA MOTORS CORP.

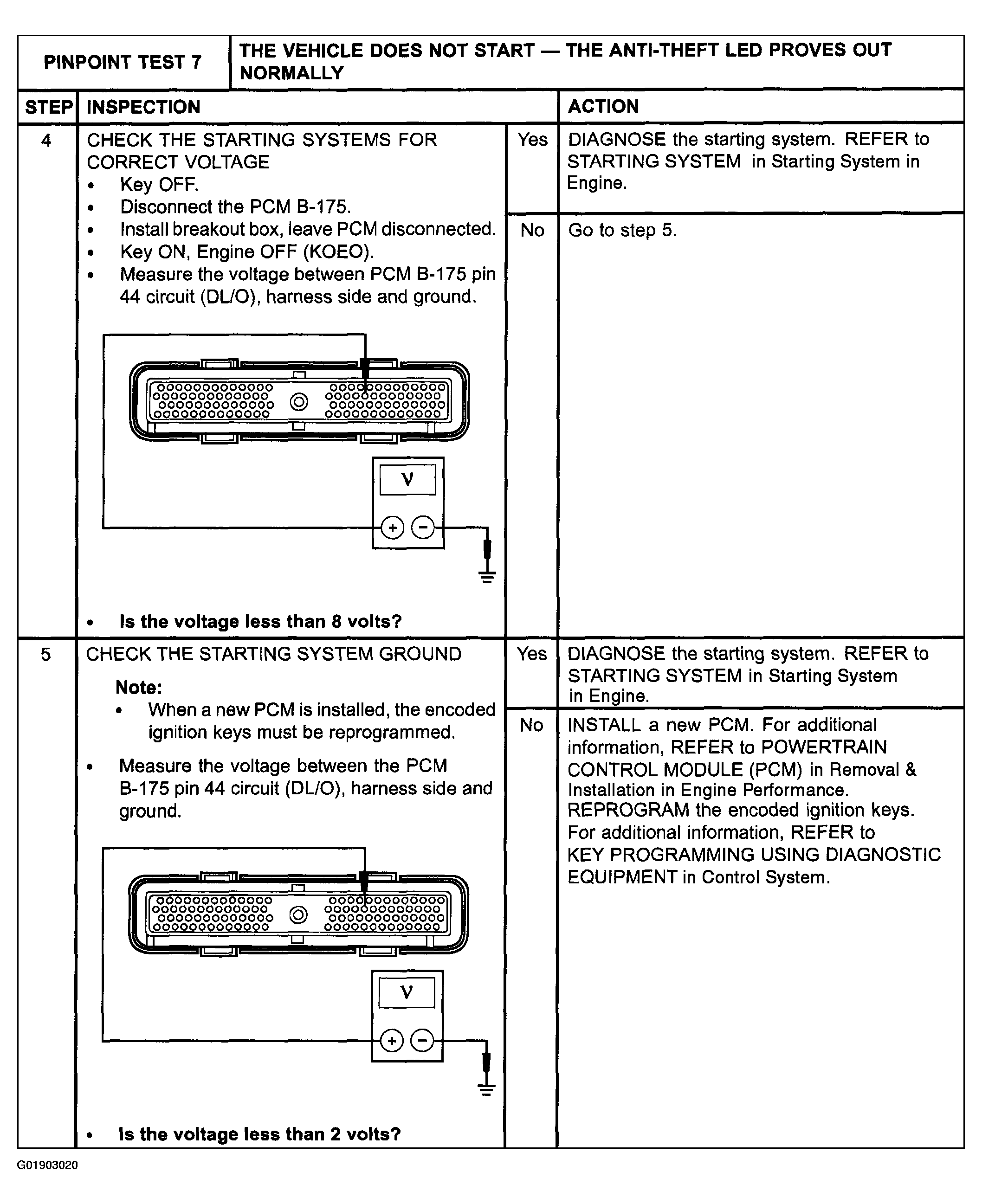

Fig 3: Pinpoint Test 7: Vehicle Does Not Start - Anti-Theft Led Proves Out Normally (Steps 4-5)
