Pinpoint Test 1: Antenna Not Connected

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

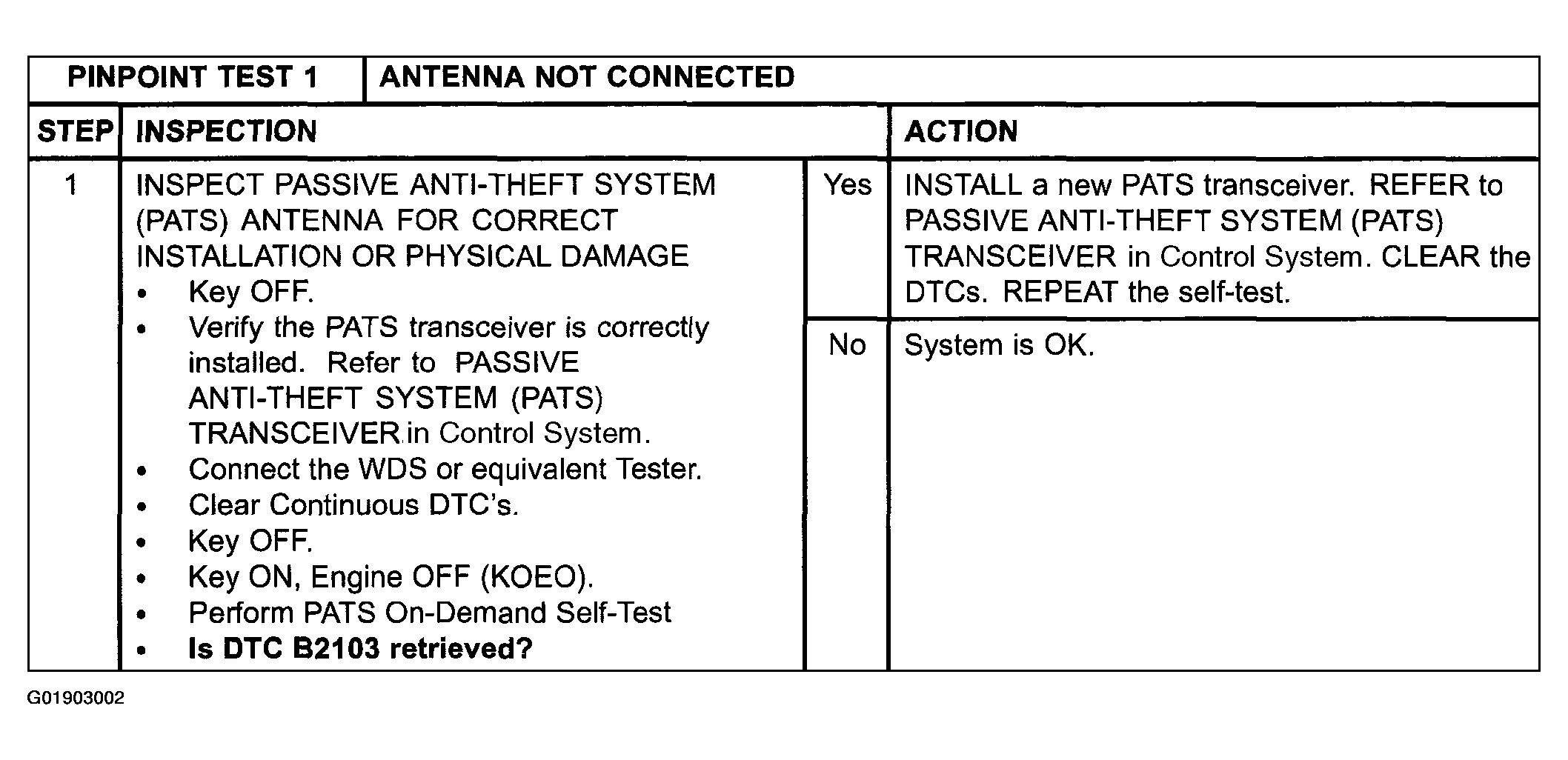

Fig 1: Pinpoint Test 1: Antenna Not Connected
G01903002Courtesy of MAZDA MOTORS CORP.
