Trunk Lid Opener Switch Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk lid open switch.
  2. Inspect for continuity between the trunk lid open switch terminals using an ohmmeter.
    • If not as specified, replace the trunk lid open switch.

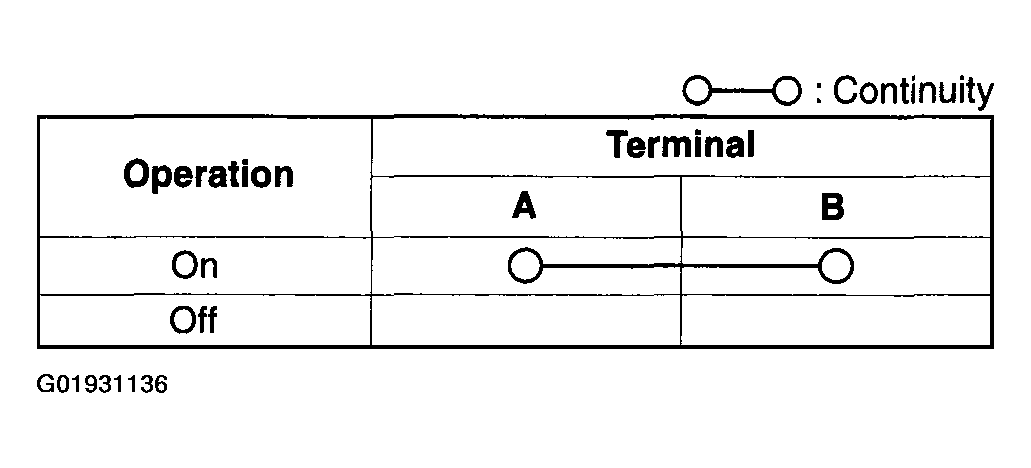

    Fig 1: Trunk Lid Opener Switch Terminals Continuity
    G01931136Courtesy of MAZDA MOTORS CORP.

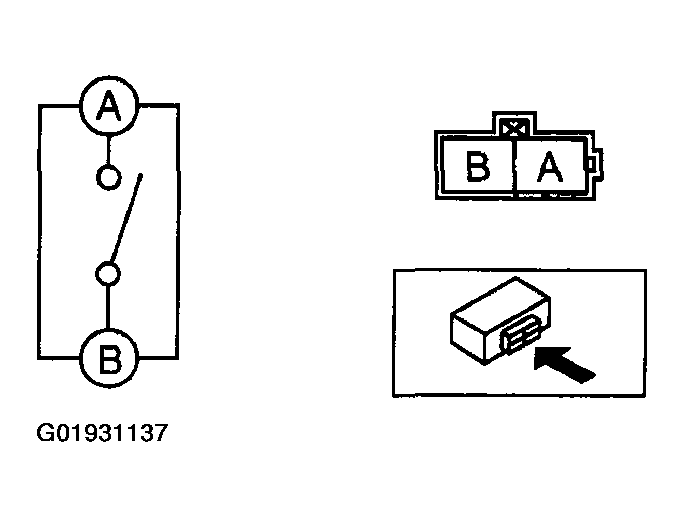

    Fig 2: Inspecting Continuity Between Trunk Lid Opener Switch Terminals
    G01931137Courtesy of MAZDA MOTORS CORP.
