Trunk Lid Opener Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Disconnect the trunk lid opener connector.
  3. Squeeze the tabs of the connector and pull it downward to remove it.
  4. Disconnect the rod
  5. Remove the bolts
  6. Install in the reverse order of removal.

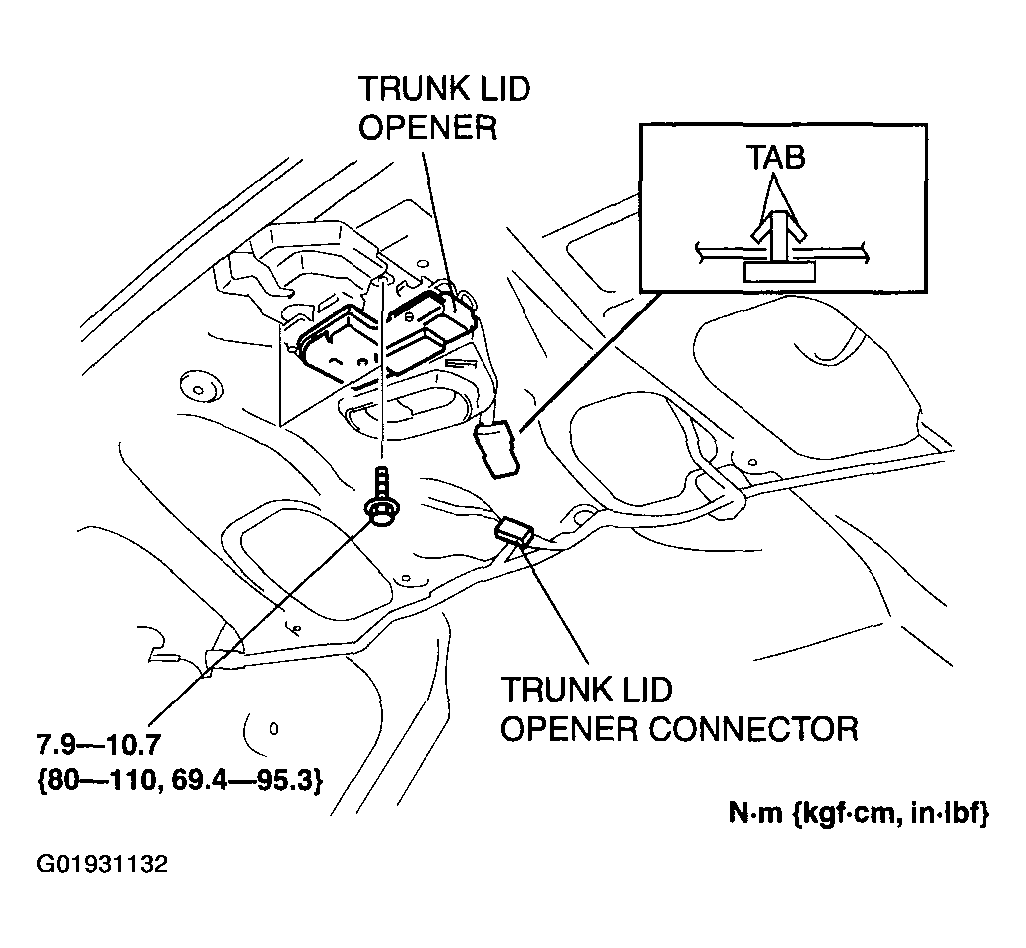

    Fig 1: Removing Trunk Lid Opener Bolts
    G01931132Courtesy of MAZDA MOTORS CORP.
