Trunk Key Cylinder Switch Inspection

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the trunk key cylinder switch.
  2. Inspect for continuity between the trunk key cylinder switch terminals using an ohmmeter.
    • If not as specified, replace the trunk key cylinder switch.

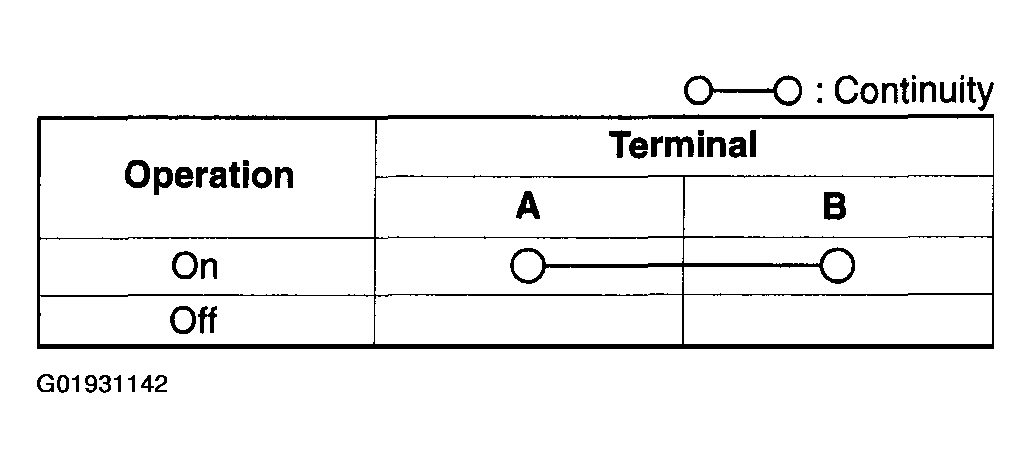

    Fig 1: Inspecting Trunk Key Cylinder Switch Continuity (1 Of 2)
    G01931142Courtesy of MAZDA MOTORS CORP.

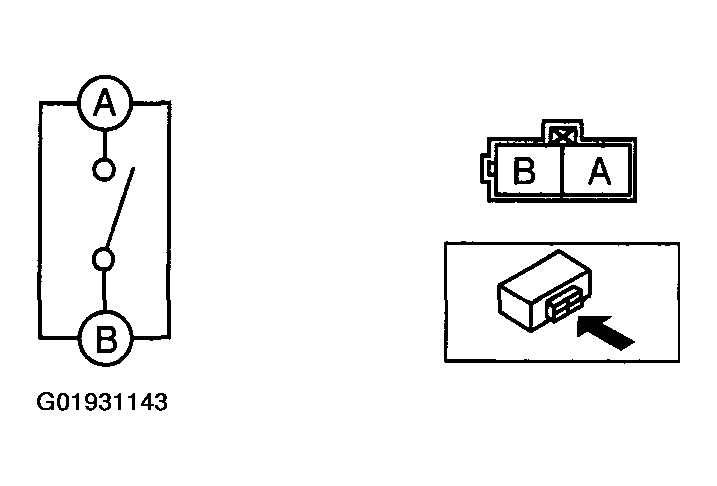

    Fig 2: Inspecting Trunk Key Cylinder Switch Continuity (2 Of 2)
    G01931143Courtesy of MAZDA MOTORS CORP.
