Trunk Key Cylinder Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the trunk key cylinder switch connector.
  3. Remove the nuts
  4. Remove the trunk key cylinder.
  5. Install in the reverse order of removal.

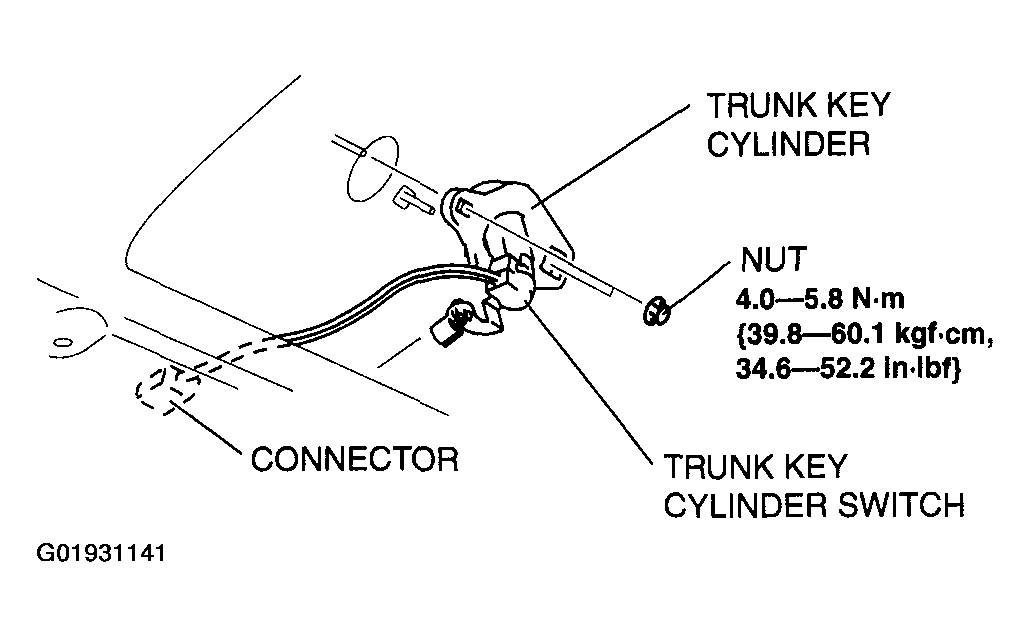

    Fig 1: Removing Trunk Key Cylinder Switch
    G01931141Courtesy of MAZDA MOTORS CORP.
